Compressor to Condenser Discharge Line - Hybrid: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Electric A/C Compressor Oil YN-32 |
- |

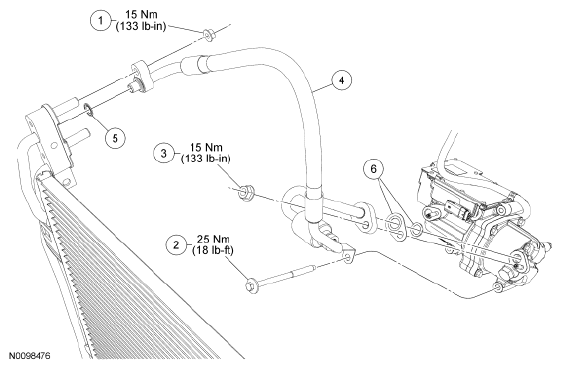

Fig 1: Compressor To Condenser Discharge Line Replacement Components With Torque Specifications - Hybrid
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Condenser inlet fitting nut |
| 2 | W701626 | Lower rear A/C compressor bolt |
| 3 | W520413 | A/C compressor discharge fitting nut |
| 4 | 19D734 | Compressor-to-condenser discharge line |
| 5 | 19B596 | Gasket seal (1 piece from kit required) |
| 6 | 19B596 | O-ring seal and gasket seal kit |
