Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

ALL ENGINES

Hold the accelerator pedal in place and disconnect the accelerator cable (9A758) from the accelerator pedal and shaft (9725).

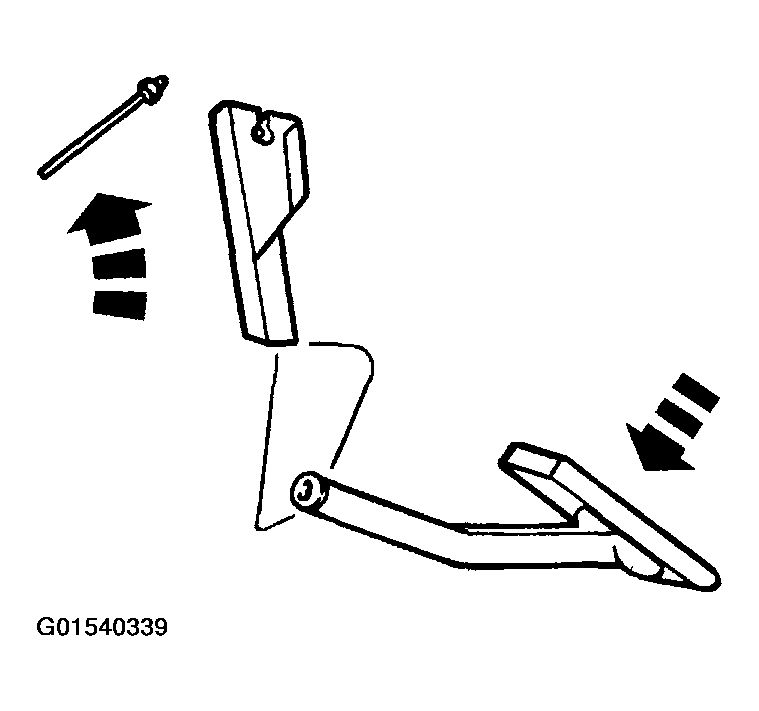

Fig 1: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
Courtesy of FORD MOTOR CO.
Remove the engine air cleaner (ACL) (9600) and outlet tube.

4.6L, 5.4L AND 6.8L ENGINES

Depress the tab and remove the accelerator control splash shield.

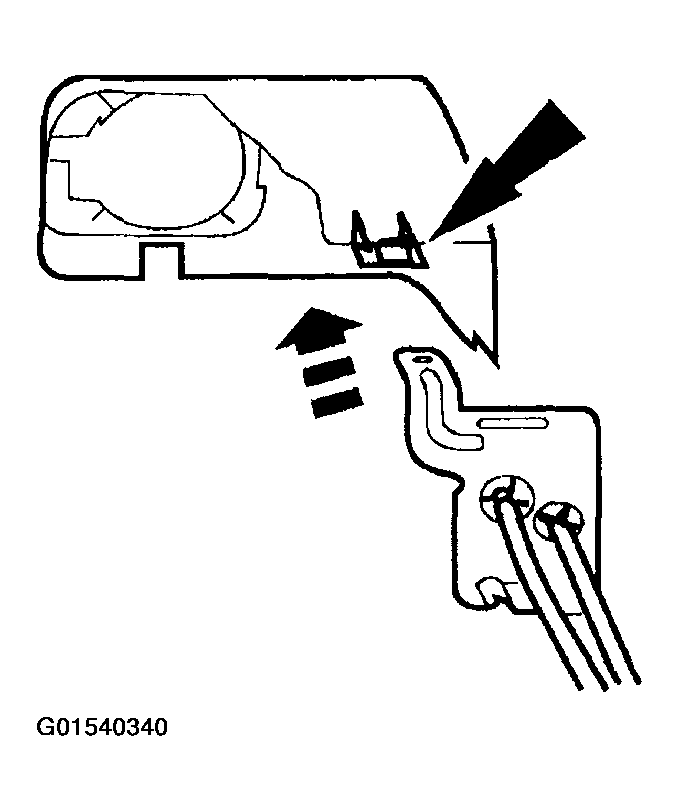

Fig 2: Removing Accelerator Control Splash Shield
Courtesy of FORD MOTOR CO.

4.2L ENGINES

Disconnect the accelerator cable pin-type retainer from the accelerator control splash shield and remove the accelerator control splash shield.

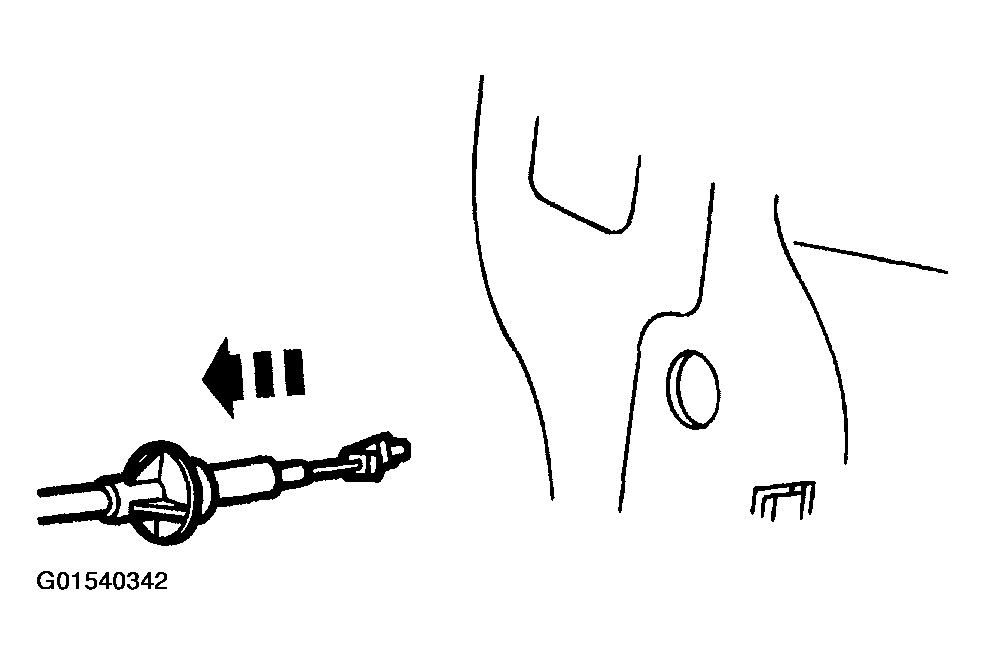

Fig 3: Disconnecting Accelerator Cable Pin-Type Retainer
Courtesy of FORD MOTOR CO.

ALL ENGINES

Remove the accelerator cable from the bulkhead.
From inside the vehicle, compress the retaining tabs on the cable end and remove the cable from the bulkhead.

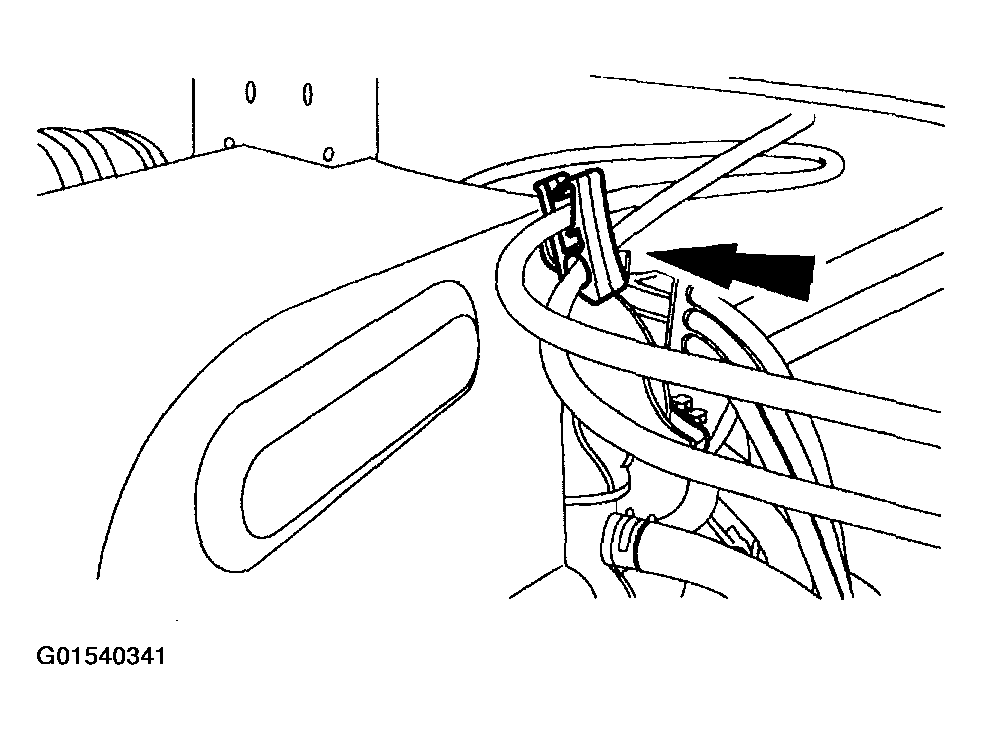

Fig 4: Compressing Retaining Tabs On Cable End
Courtesy of FORD MOTOR CO.
Remove the accelerator cable from the throttle body cam.

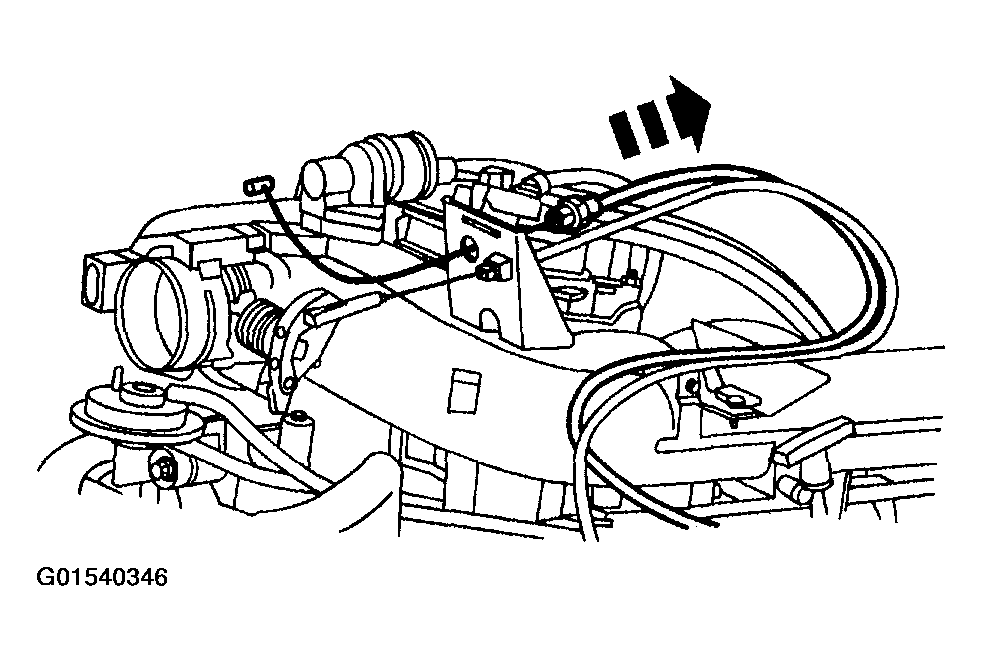

Fig 5: Removing Accelerator Cable From Throttle Body Cam
Courtesy of FORD MOTOR CO.

4.2L AND 4.6L ENGINES

Remove the accelerator cable from the clip.
- On 4.2L engines, discard the clip.

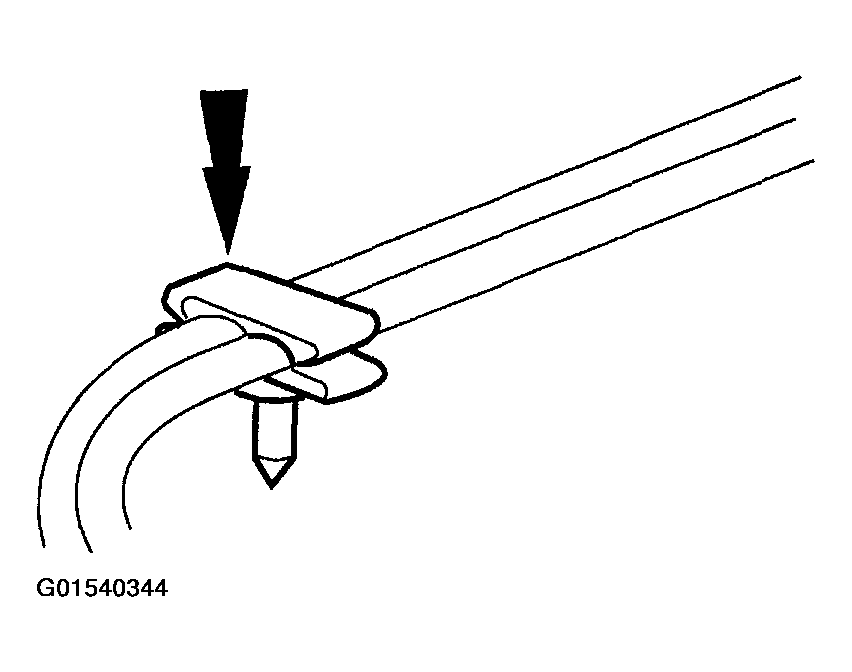

Fig 6: Removing Accelerator Cable From Clip
Courtesy of FORD MOTOR CO.

5.4L AND 6.8L ENGINES

Remove the accelerator cable from the clip.

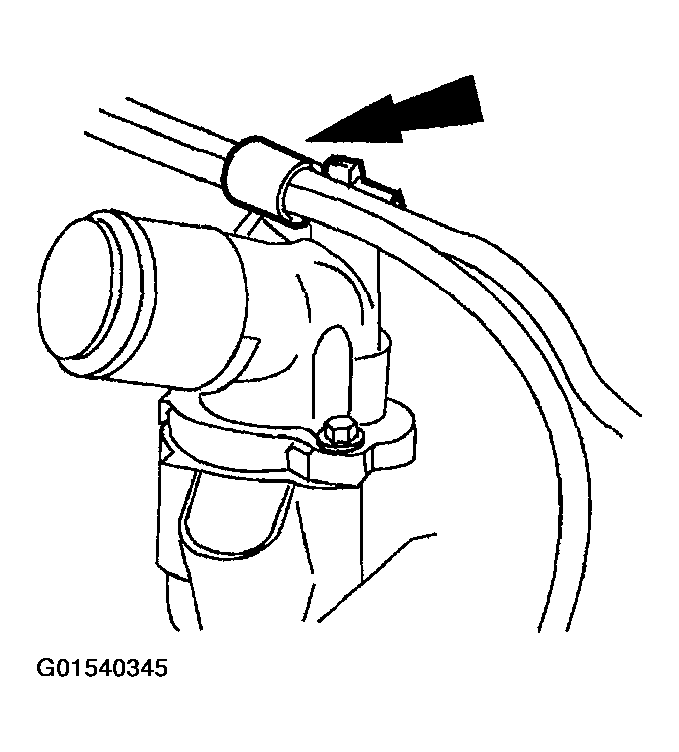

Fig 7: Removing Accelerator Cable From Clip
Courtesy of FORD MOTOR CO.

ALL ENGINES

Remove the accelerator cable from the accelerator cable bracket (9723).
Compress the retaining tabs on the cable and remove the accelerator cable from the bracket.

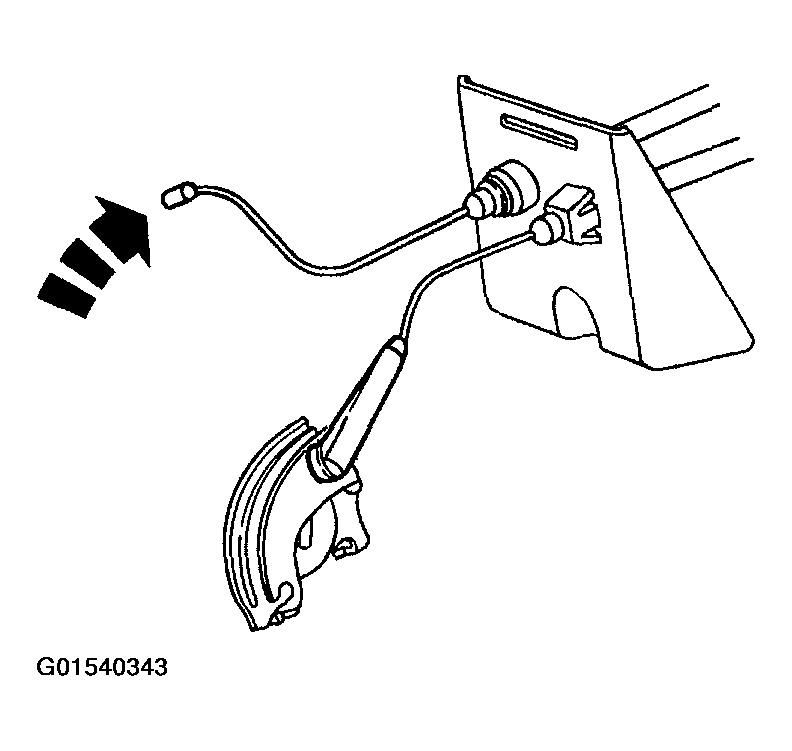

Fig 8: Compressing Retaining Tabs On Cable
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Install new pin-type accelerator cable pin-type retaining clip on 4.2L engines.
