Connecting Rod - Bushing Diameter

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Measure the inner diameter of the connecting rod bushing, if equipped. Verify the diameter is within specification.
- For 2.0L Zetec engine procedure see appropriate section in ENGINE - 2.0L ZETEC . For 3.0L (4V) engine procedure see appropriate section in ENGINE - 3.0L (4V) .
- If out of specification, install new components as necessary. For 2.0L Zetec engine procedure see appropriate section in ENGINE - 2.0L ZETEC . For 3.0L (4V) engine procedure see appropriate section in ENGINE - 3.0L (4V) .

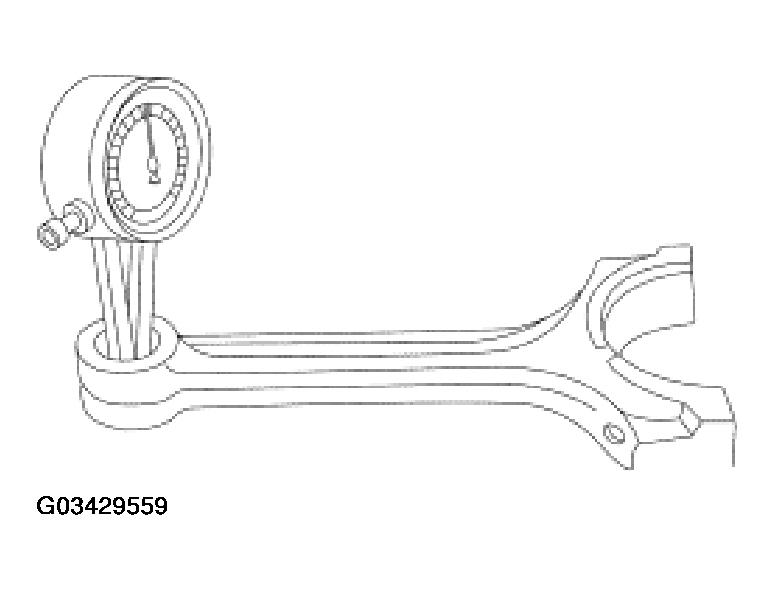

Fig 1: Measuring Inner Diameter Of Connecting Rod
Courtesy of FORD MOTOR CO.
