Piston - Pin Diameter
WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

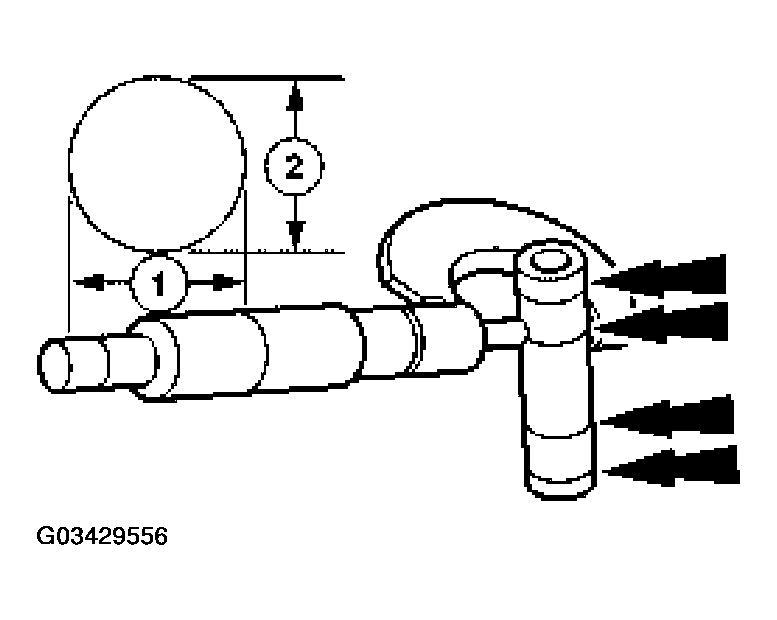

- Measure the piston pin diameter in 2 directions at the points shown. Verify the diameter is within specification.
- For 2.0L Zetec engine procedure see appropriate section in ENGINE - 2.0L ZETEC . For 3.0L (4V) engine procedure see appropriate section in ENGINE - 3.0L (4V) .
- If out of specification, install new components as necessary. For 2.0L Zetec engine procedure see appropriate section in ENGINE - 2.0L ZETEC . For 3.0L (4V) engine procedure see appropriate section in ENGINE - 3.0L (4V) .
