Valve - Guide Inner Diameter

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Measure the inner diameter of the valve guides in 2 directions where indicated. For 2.0L Zetec engine procedure see appropriate section in ENGINE - 2.0L ZETEC . For 3.0L (4V) engine procedure see appropriate section in ENGINE - 3.0L (4V) .

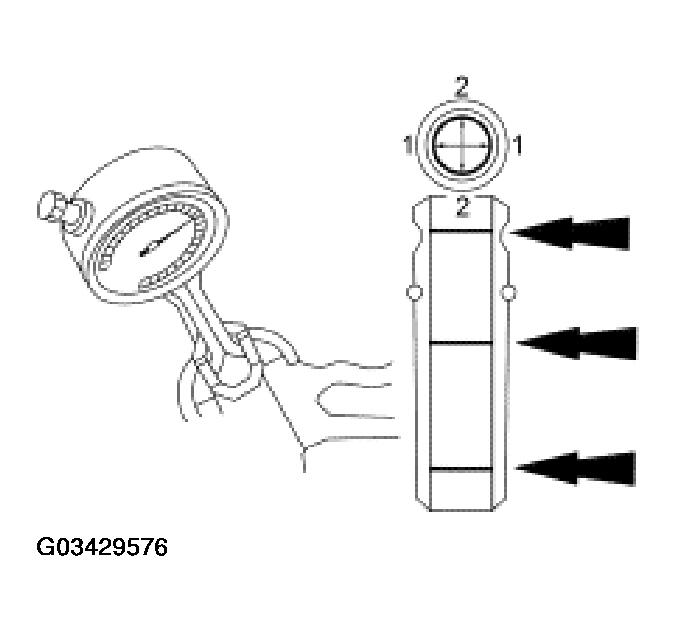

Fig 1: Measuring Inner Diameter Of Valve Guides
Courtesy of FORD MOTOR CO.
If the valve guide is not within specifications, ream the valve guide and install a valve with an oversize stem or remove the valve guide and install a new valve guide.
