Accelerometer/Yaw Rate Sensor C3073
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

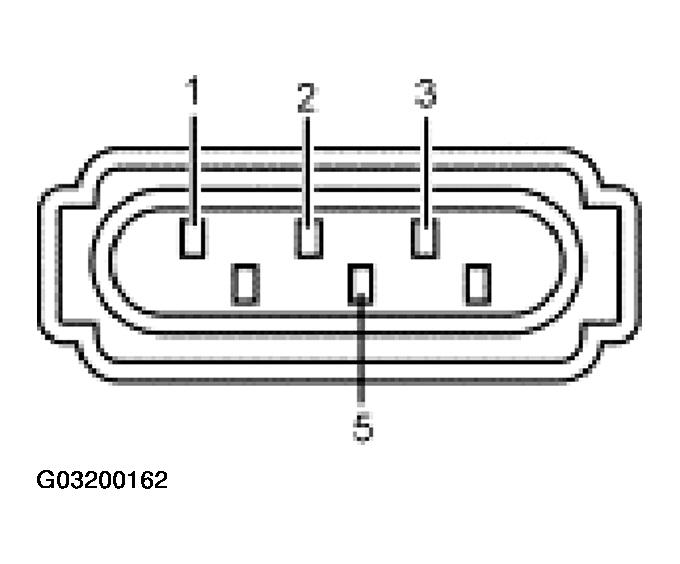

C3073 CONNECTOR REFERENCE CHART
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 9-CF66 (BN/BU) Accelerometer/yaw rate sensor CAN Bus (-) | CAN communication low current when connected. |
| 2 | 8-CF66 (WH/BU) Accelerometer/yaw rate sensor CAN Bus (+) | CAN communication high current when connected. |
| 3 | 7-CF67 (YE/RD) Steering wheel rotation sensor/accelerometer/yaw rate sensor power | Greater than 9 volts with ignition in START or RUN. |
| 5 | 9-CF67 (BN/RD) Steering wheel rotation/accelerometer/yaw rate sensor return | Zero volts, less than five ohms to chassis ground. |
