LF Wheel Speed Sensor C150
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

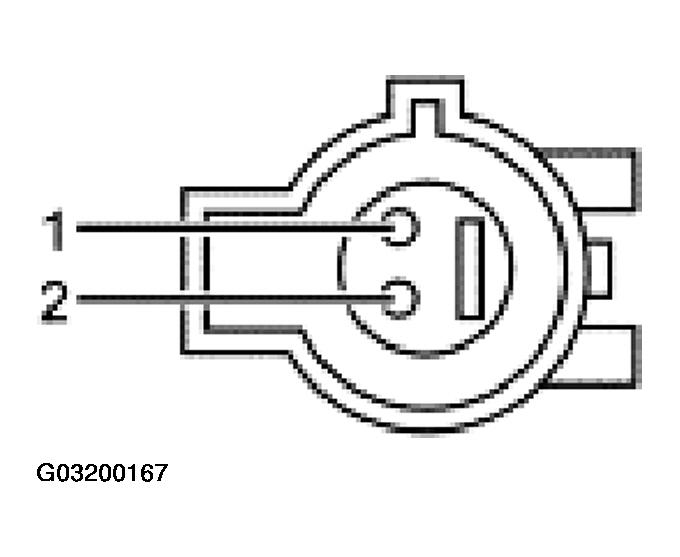

C150 CONNECTOR REFERENCE CHART
|
|
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 1 |
7-CF32 (YE/BR) LF wheel speed (+) |
PID value 0 to 255 km/h (0 to 158 mph). |
| 2 |
8-CF32 (WH/BR) LF wheel speed (-) |
PID value 0 to 255 km/h (0 to 158 mph). |
