Rear Wheel Speed Sensor and Sensor Ring

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Clean off all dirt and foreign material that may have collected around the rear anti-lock brake sensor before removal.

With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to LIFTING .
Remove the parts in the order indicated in the following illustration and table.

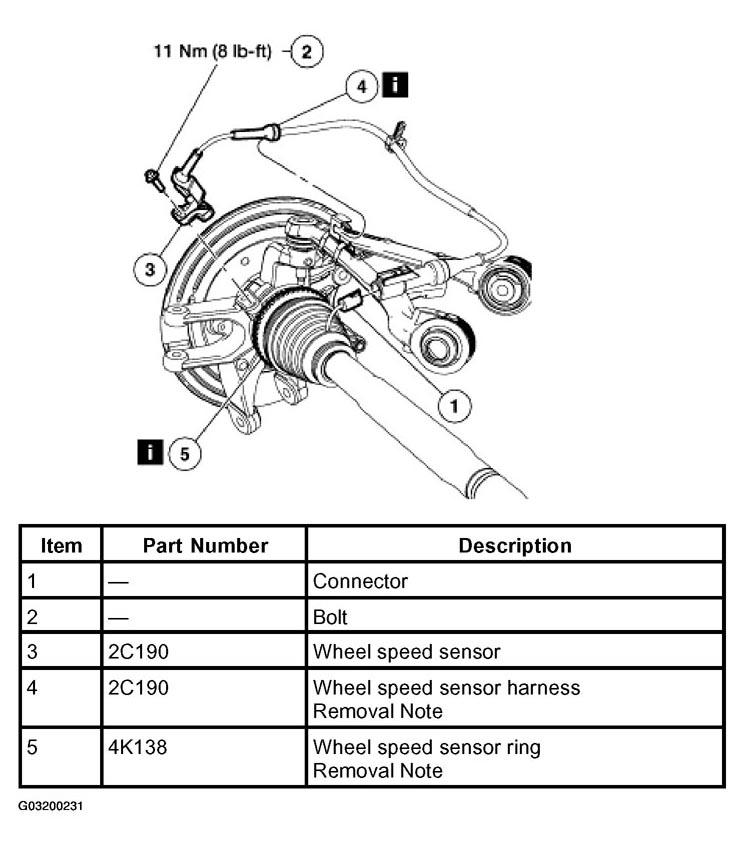

Fig 1: Removing Rear Wheel Speed Sensor And Sensor Ring
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 4: Wheel Speed Sensor Harness Removal Note

Remove the rear wheel speed sensor harness from the upper control arm clip.

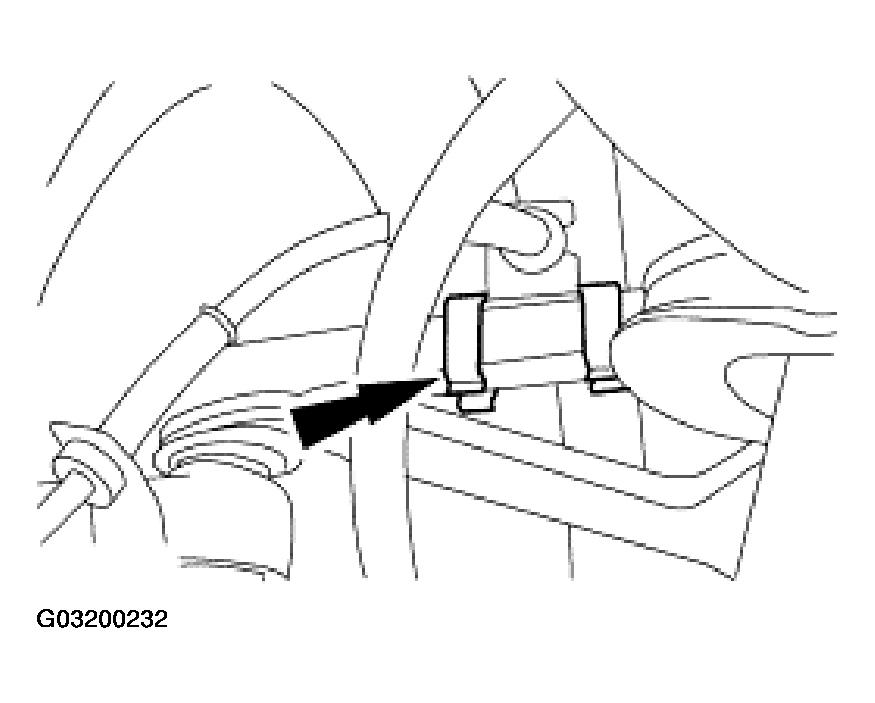

Fig 2: Removing Rear Wheel Speed Sensor Harness From Upper Control Arm Clip
Courtesy of FORD MOTOR CO.

Item 5: Wheel Speed Sensor Ring Removal Note

The wheel speed sensor ring is not serviceable and must be replaced as part of the rear halfshaft assembly. For additional information, refer to DRIVELINE SYSTEM .
