Climate Control System Components - J1850 Communications Network (SCP) Linked

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

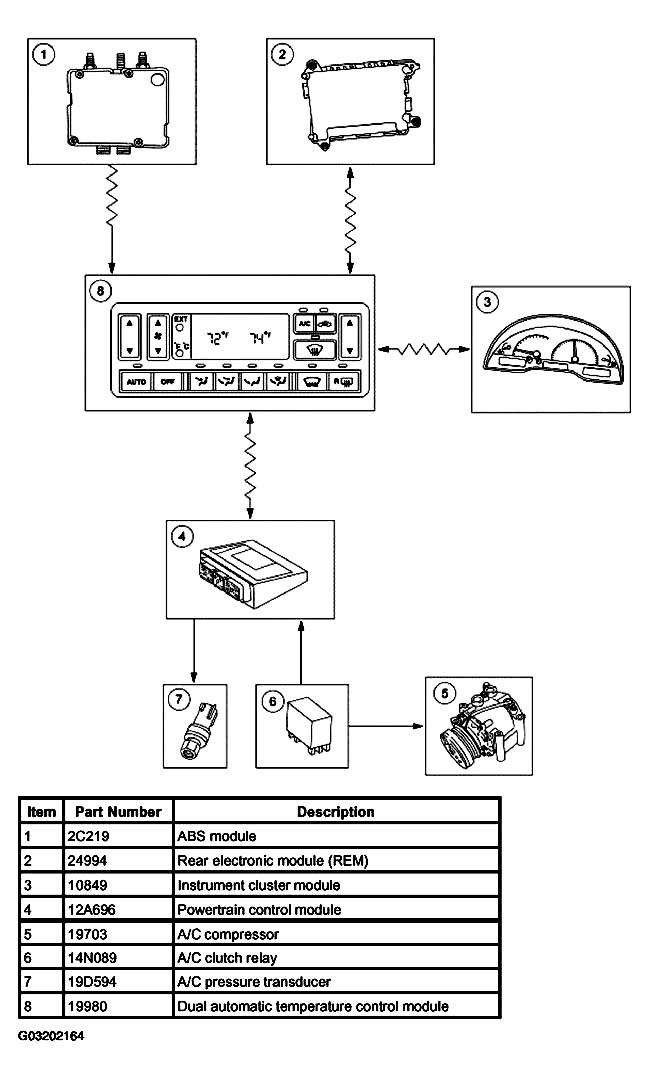

Fig 1: Identifying Climate Control System Components - J1850 Communications Network (SCP) Linked
G03202164Courtesy of FORD MOTOR CO.
