Coolant Control Valve
WARNING:
This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

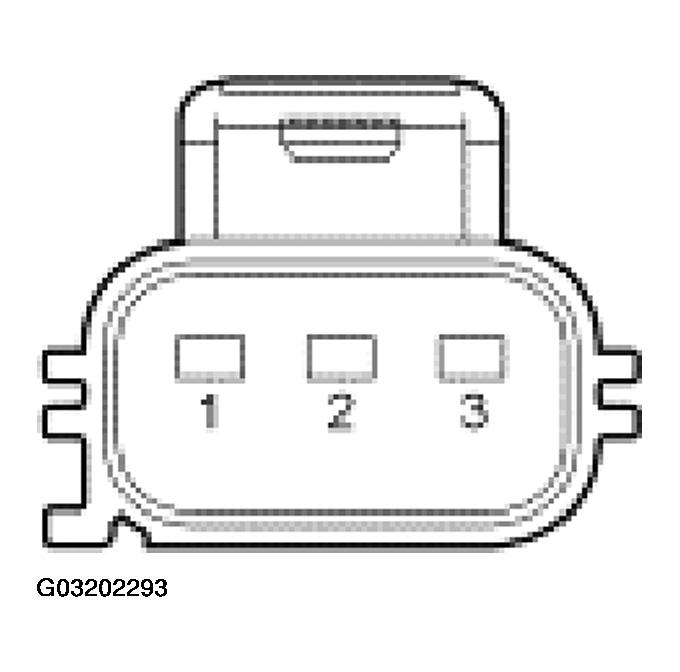

COOLANT CONTROL VALVE PINS RESISTANCE REFERENCE
Coolant Control Valve Pins
Resistance
1 and 2
10-23 ohms
2 and 3
10-23 ohms
