Fluorescent Dye Injection - Using a Dye Injector Loop Kit

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before using the R-134a fluorescent dye injector for the first time, refer to the equipment manufacturers instructions on evacuation of non-condensable gasses from the hoses.
NOTE: Refrigerant system pressure should be between 413-551 kPa (60-80 psi) at 24°C (75°F).
  1. Verify that the valves on the special tool are closed.

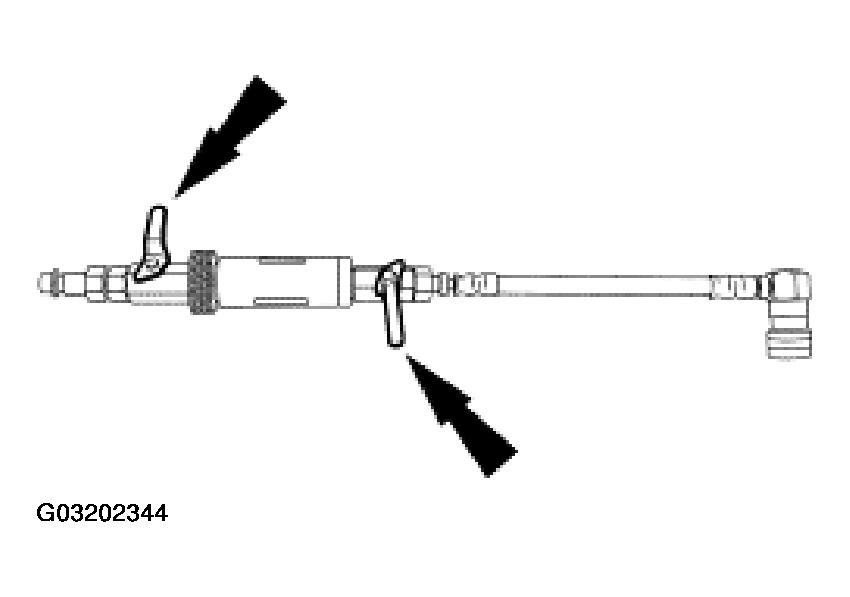

    Fig 1: Locating Valves On Special Tool
    G03202344Courtesy of FORD MOTOR CO.
  2. Fill the special tool reservoir with 7 ml (0.25 oz) of fluorescent dye.

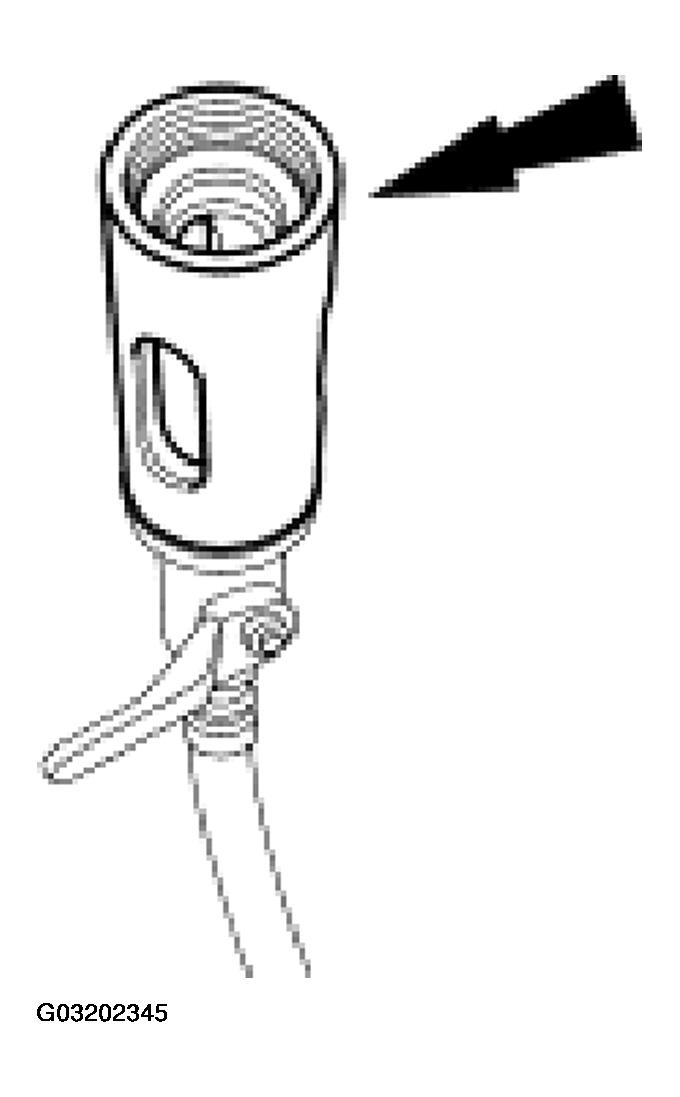

    Fig 2: Filling Special Tool Reservoir With Fluorescent Dye
    G03202345Courtesy of FORD MOTOR CO.
  3. Install the special tool between the high-pressure and low-pressure service gauge port valves.
  4. CAUTION: Make sure all tools and hoses are clear of the engine cooling fan and drive belt before starting the engine.
  5. Start the engine.
  6. Open the high-pressure service valve.

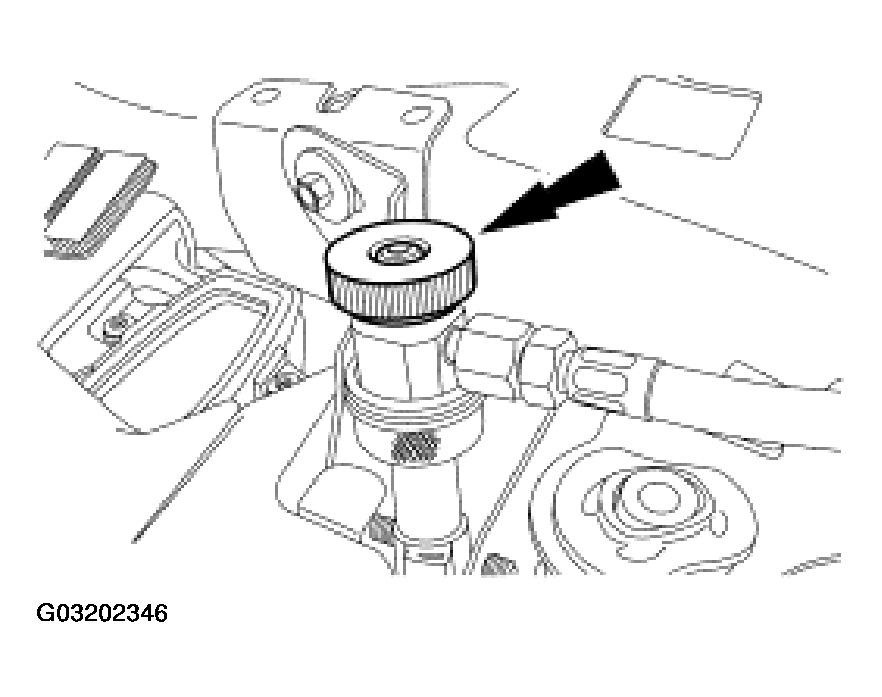

    Fig 3: Opening High-Pressure Service Valve
    G03202346Courtesy of FORD MOTOR CO.
  7. Open the special tool valves and inject the fluorescent dye into the refrigerant system.

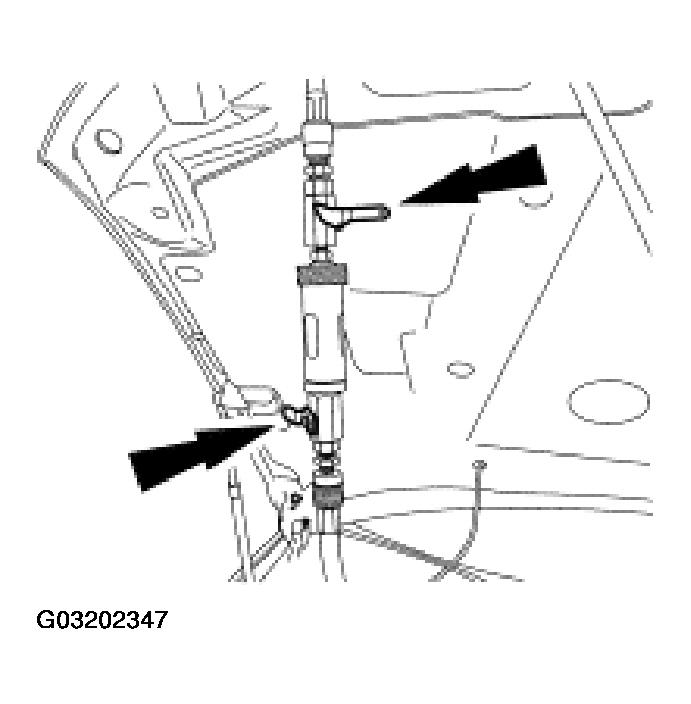

    Fig 4: Opening Special Tool Valves
    G03202347Courtesy of FORD MOTOR CO.
  8. Close the high-pressure service valve to allow the pressure inside the special tool to equalize with the suction side of the refrigerant system.
    Fig 5: Closing High-Pressure Service Valve
    G03202348Courtesy of FORD MOTOR CO.
  9. NOTE: Close the valves on the special tool while the A/C compressor is operating.
    Fig 6: Closing Valves On Special Tool
    G03202349Courtesy of FORD MOTOR CO.
  10. Close the valves on the special tool.
  11. NOTE: Leave all valves on the special tool closed when not in use.
  12. Disconnect the high-pressure and low-pressure service valves and remove the special tool from the vehicle.
