In-Vehicle Temperature Sensor

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument cluster finish panel. For additional information, refer to INTERIOR TRIM .
Remove the components in the order indicated in the following illustration and table.
To install, reverse the removal procedure.

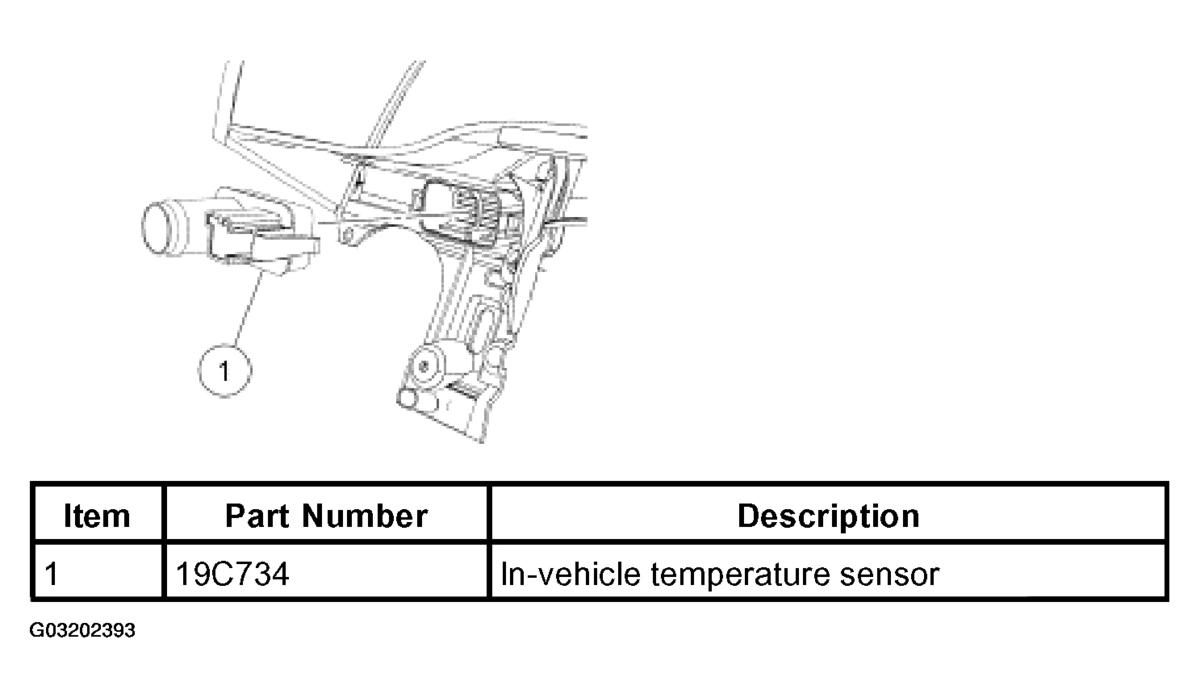

Fig 1: Removing In-Vehicle Temperature Sensor
Courtesy of FORD MOTOR CO.
