Instrument Panel Registers

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the components in the order indicated in the following illustration and table. To remove individual components, only carry out the following steps. See COMPONENTS REMOVING STEPS .

COMPONENTS REMOVING STEPS

Component	Steps
Driver side register	1
Passenger side register	2
Center register	3-6

To install, reverse the removal procedure.

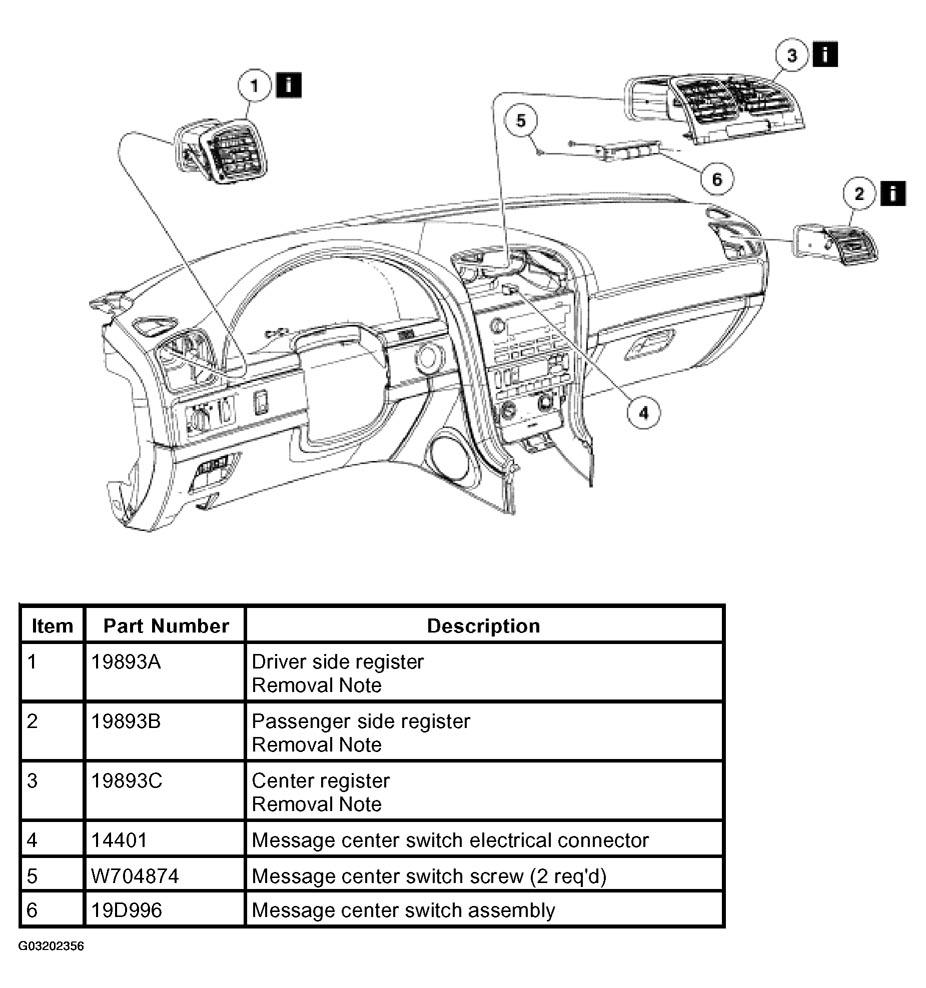

Fig 1: Identifying Removing Sequence Of Instrument Panel Registers
Courtesy of FORD MOTOR CO.

Item 1-2: Driver Side and Passenger Side Register Removal Note

Depress the inboard side tab with a flat blade tool. Pull the register rearward, depress the outboard tab and remove the register.

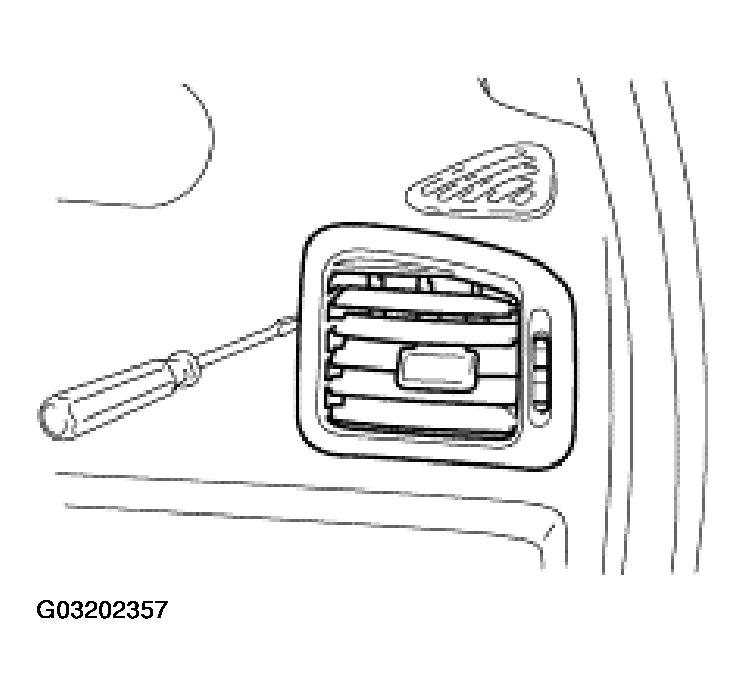

Fig 2: Depressing Inboard Side Tab With Flat Blade Tool
Courtesy of FORD MOTOR CO.

Item 3: Center Register Removal Note

Insert a mini-pick in the pocket and pull the register from the instrument panel.

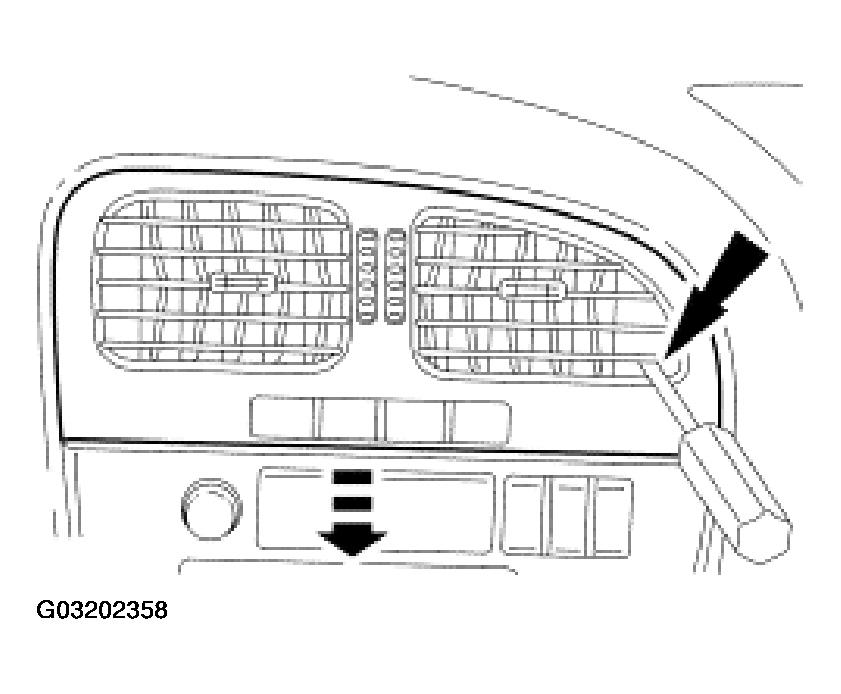

Fig 3: Inserting Mini-Pick In Pocket
Courtesy of FORD MOTOR CO.
