Receiver Drier Manifold and Tube Assembly: Material
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) | WSH-M1C231-B |
NOTE:
Installation of a new receiver drier is not required when repairing the air conditioning system except when there is physical evidence of contamination from a failed A/C compressor or damage the receiver drier.
NOTE:
New O-ring seals, lubricated in clean PAG oil, must be installed before reconnecting any A/C fitting that has been disconnected.
- Position the vehicle on a hoist with the gear selector in NEUTRAL. For additional information, refer to LIFTING .
- Recover the refrigerant. For additional information, refer to AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
- Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS - 3.0L (4V) or INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS - 3.9L .

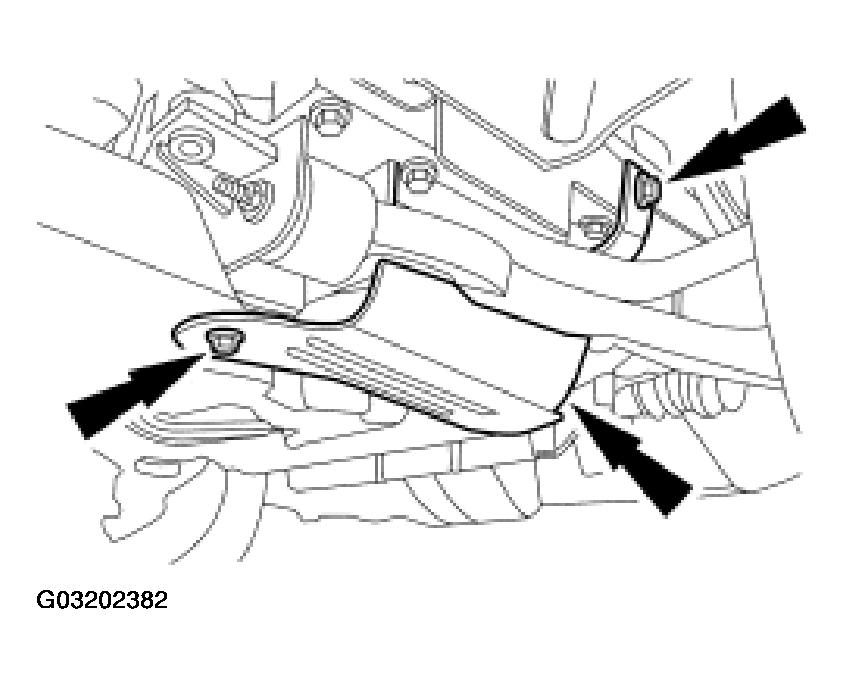

- Remove the RH deflector shield.

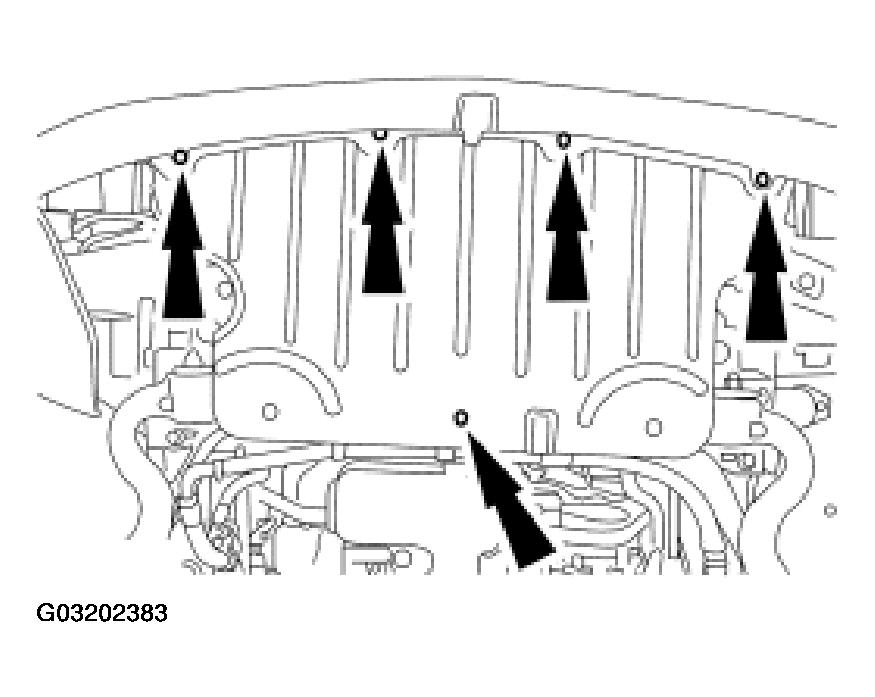

- Remove the screws and the splash shield.
- Remove the air deflector.

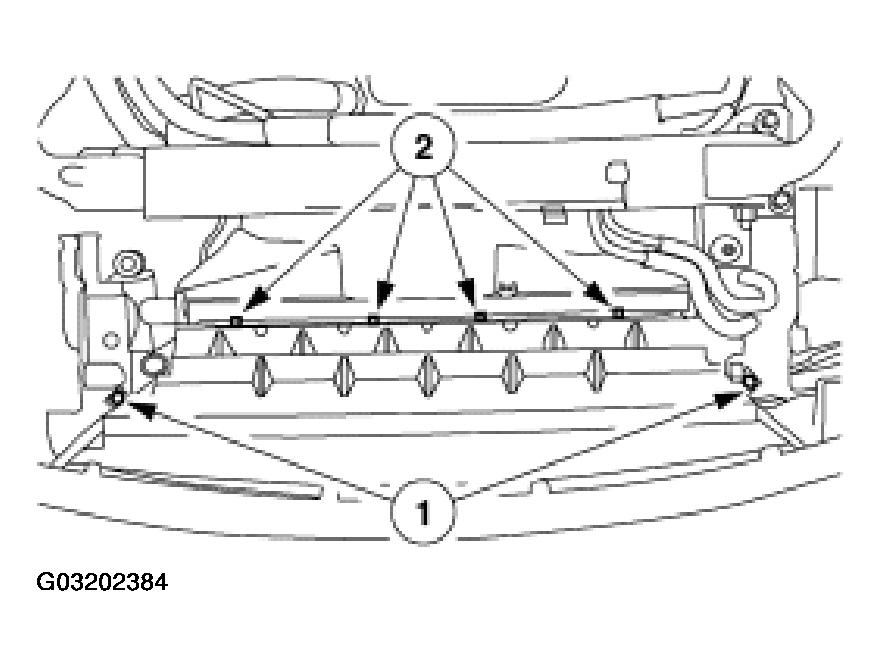

- Remove the pin-type retainers.
- Remove the clips and the air deflector.

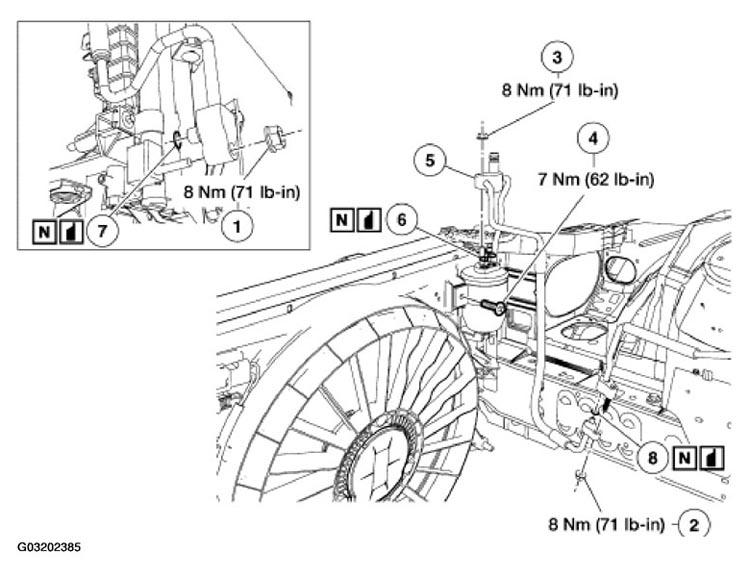

- Remove the components in the order indicated in the following illustration and table. See Fig 4.
- To install, reverse the removal procedure.
- Lubricate the refrigerant system with the correct amount of clean PAG oil. For additional information, refer to REFRIGERANT OIL ADDING .
- Evacuate, leak test and charge the refrigerant system, for additional information, refer to AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
