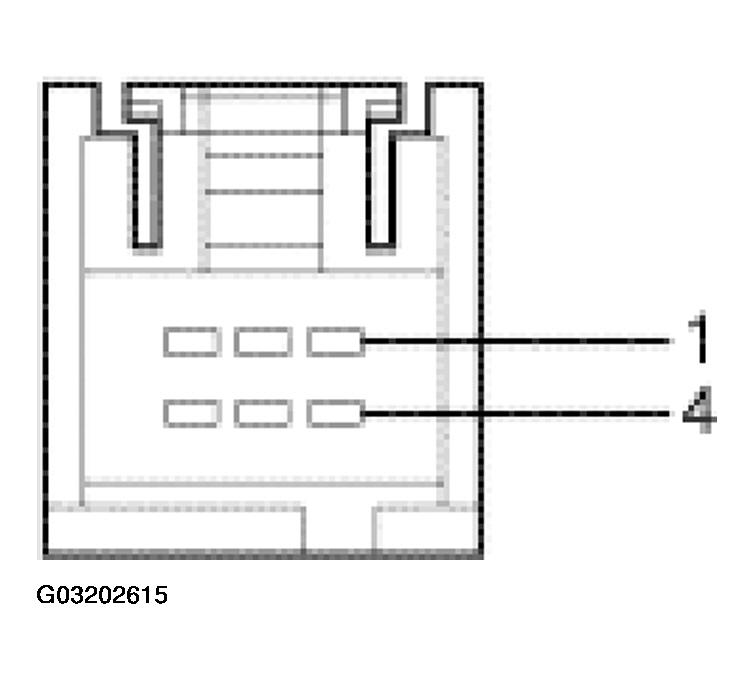

AUDIO UNIT C290C CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 4-EG10 (GY/BK) standard corporate protocol (SCP) | Less than 5 ohms between the audio unit and data link connector. Greater than 10,000 ohms between the audio unit and ground. |
| 4 | 5-EG10(BU/YE) standard corporate protocol (SCP) | Less than 5 ohms between the audio unit and data link connector. Greater than 10,000 ohms between the audio unit and ground. |
