Antenna Grid Wire Repair: Material

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

ITEM SPECIFICATIONS

Item	Specification
Rear Window Defroster Repair D8AZ-19562-AA or equivalent	WSB-M4J58-B

Bring the vehicle up to room temperature of at least 16°C (60°F) or above.

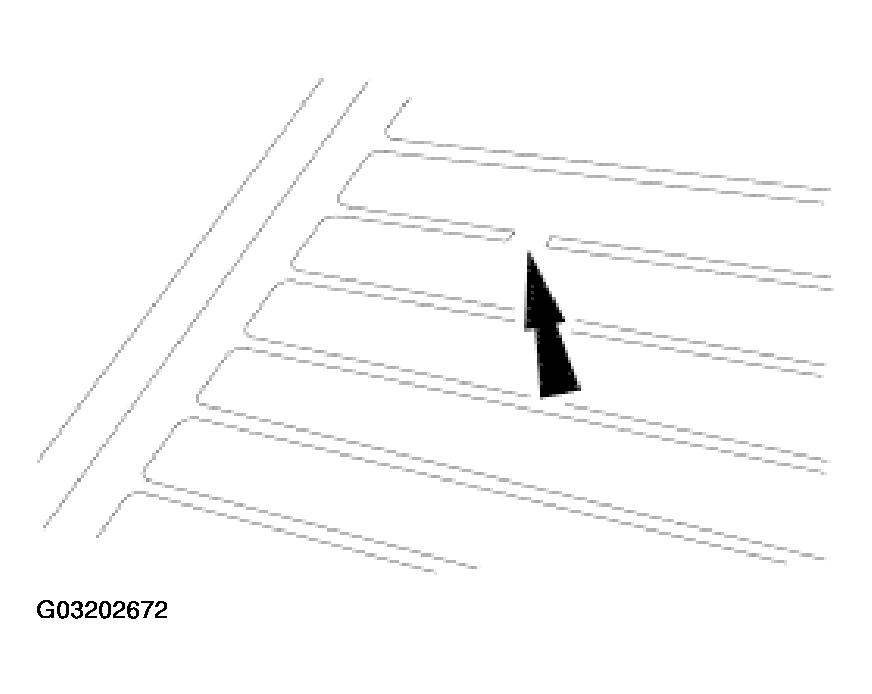

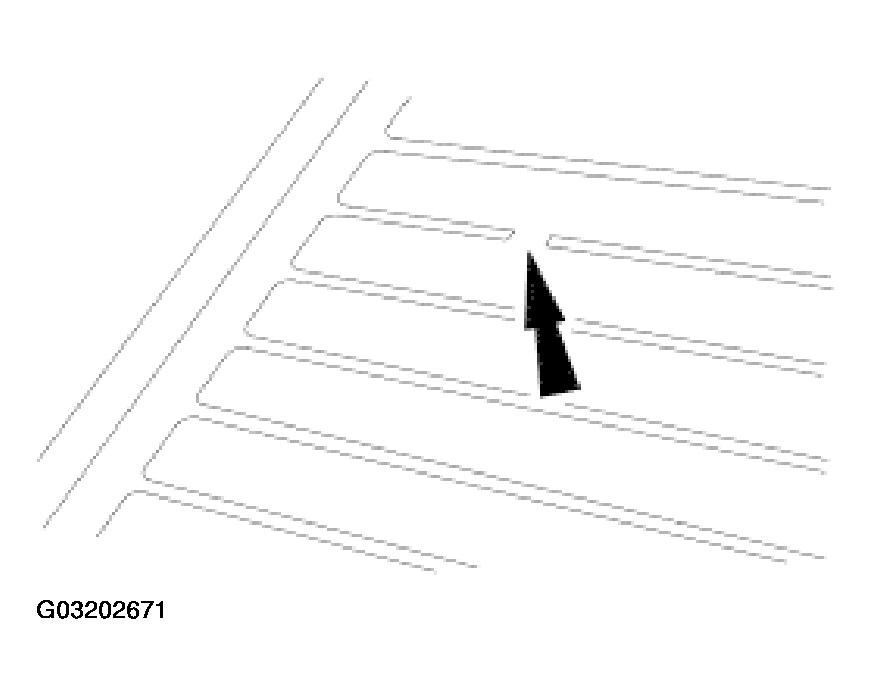

Fig 1: Identifying Grid Break
Courtesy of FORD MOTOR CO.
Clean the entire grid line repair area with a non-alcohol based window cleaner and 0000 steel wool.
Mark the location of the grid break on the exterior of the rear window glass.

Fig 2: Marking Location Of Grid Break On Exterior Of Rear Window Glass
Courtesy of FORD MOTOR CO.
Using cellulose tape, mask the area directly above and below the grid break. The break area should be at the center of the mask.

Fig 3: Masking Grid Break Area
Courtesy of FORD MOTOR CO.

NOTE: Allow at least five minutes of drying time between applications.

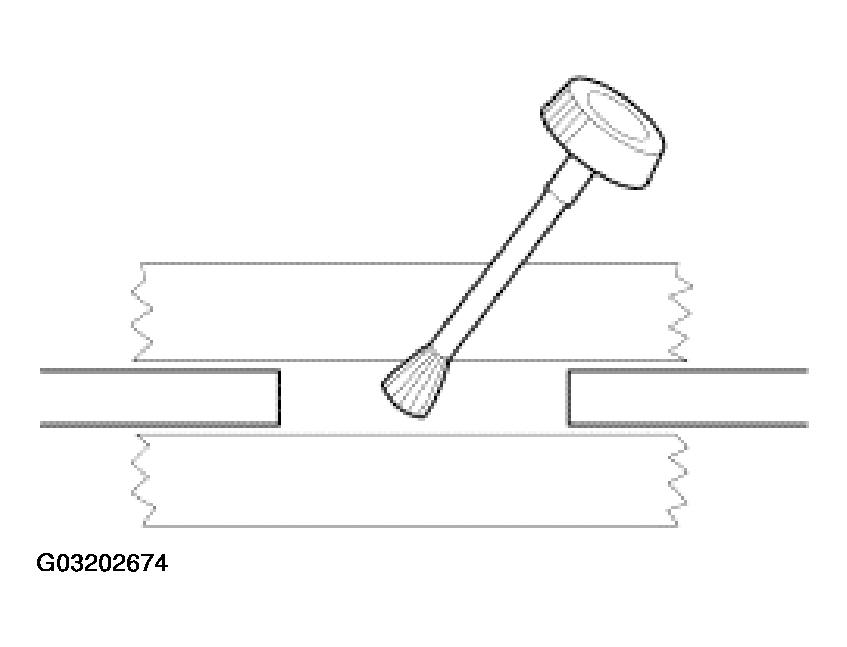

Fig 4: Applying Repair Coating To Grid Break Area

Courtesy of FORD MOTOR CO.

Apply the repair coating to the grid break area in several smooth, continuous strokes.
Apply three applications of the grid repair compound.
After five minutes, or after the repair area has dried completely, remove the mask.

CAUTION: Be careful not to damage the grid line with the razor blade. If this occurs, additional repair may be necessary.

Remove any excess repair compound above or below the grid line with a razor blade.

NOTE: The repair coating will air-dry in approximately one minute and can be energized within three minutes.

NOTE: Optimum adhesion occurs after approximately 24 hours.

After optimum hardness is achieved, clean the repaired area with a non-alcohol based window cleaner.
