Removal And Installation: Antenna

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The antenna is a conductive trace integral to the rear window glass and can be repaired, but not installed separately. For removal and installation of the back glass, refer to EXTERIOR TRIM . For repair procedures, refer to ANTENNA GRID WIRE REPAIR .

NOTE: Antenna cable is not serviceable, it comes with the interior harness.

Disconnect the battery ground cable.
Remove the LH and RH rear quarter panel trim panels. For additional information, refer to INTERIOR TRIM .
Lower the rear of the headliner.
Remove the parts in the order indicated in the following illustration and table.

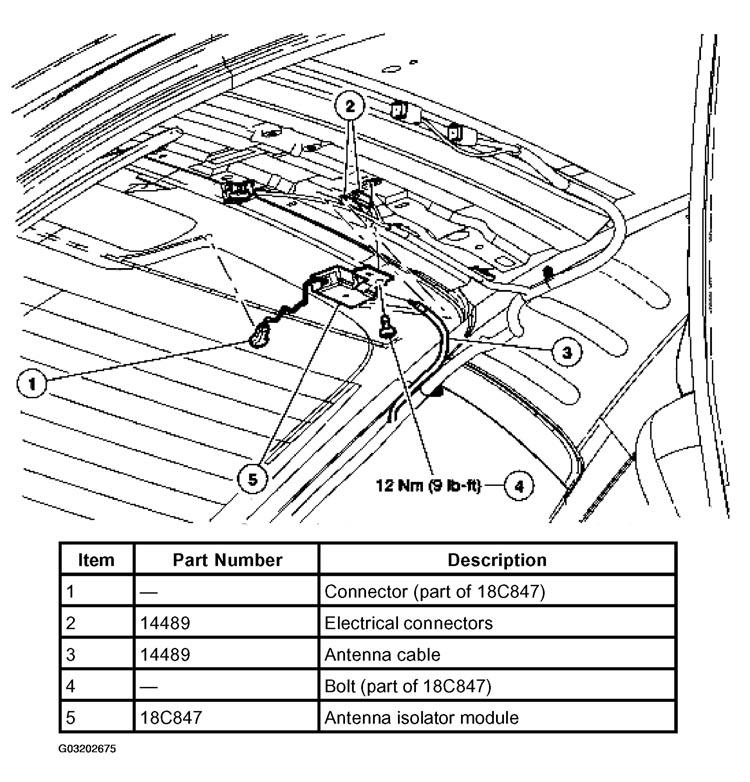

Fig 1: Identifying Removal Order Of Antenna
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
