Audio Unit

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Remove the console finish panel. For additional information, refer to INTERIOR TRIM .
Remove the parts in the order indicated in the following illustration and table.

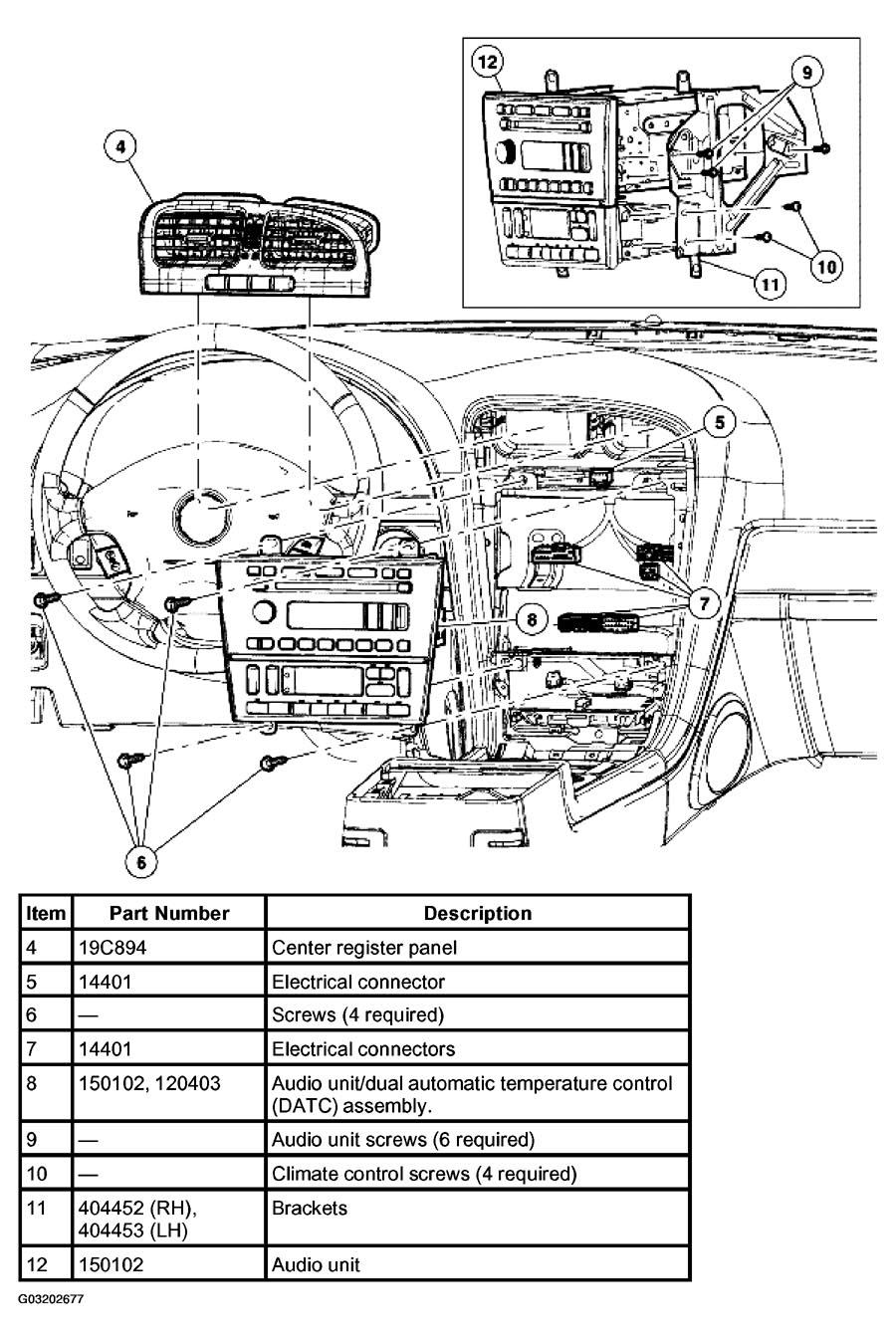

Fig 1: Identifying Removal Order Of Audio Unit (1 Of 2)
Courtesy of FORD MOTOR CO.

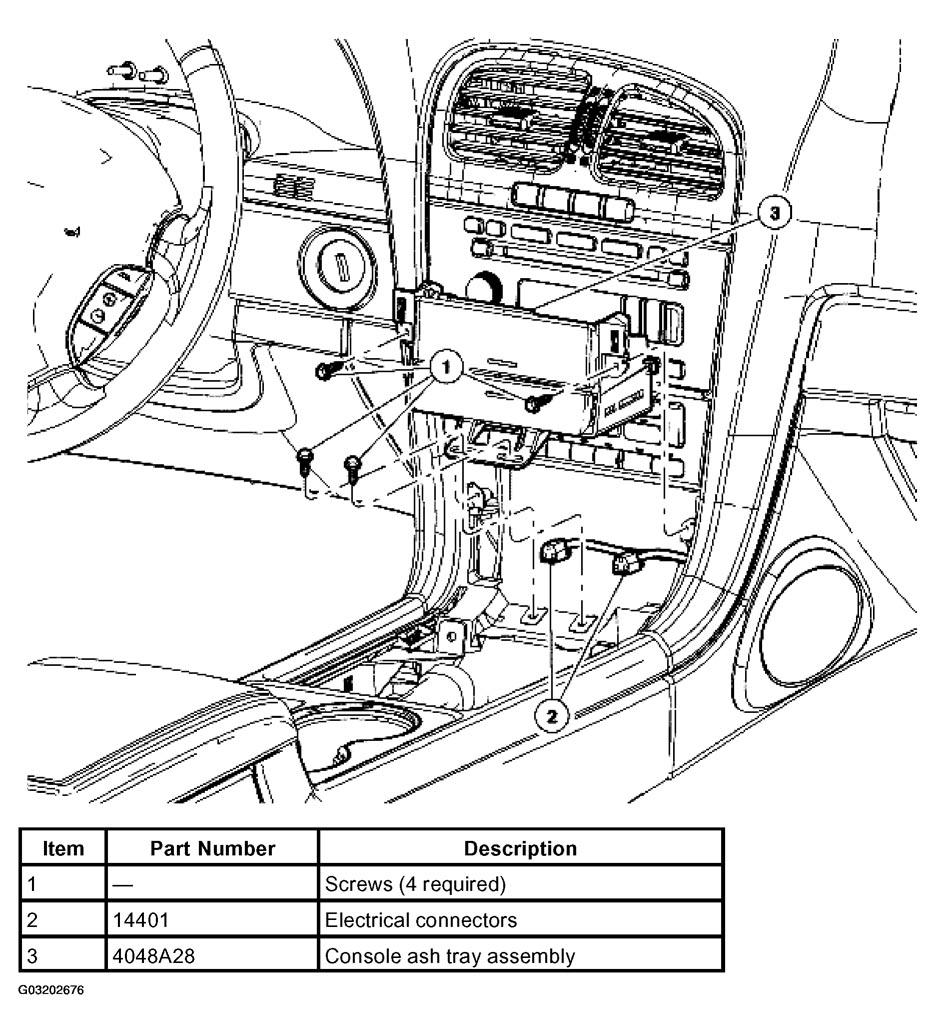

Fig 2: Identifying Removal Order Of Audio Unit (2 Of 2)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
