Steering Wheel Audio Controls

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver air bag module. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
  2. Remove the parts in the order indicated in the following illustration and table.

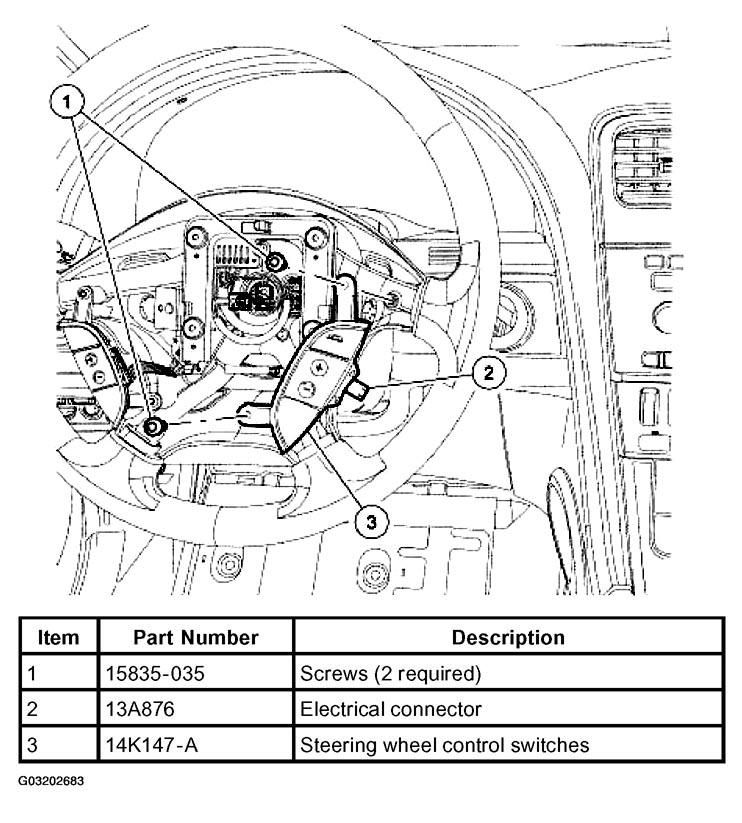

    Fig 1: Identifying Removal Order Of Steering Wheel Audio Controls
    G03202683Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
