Subwoofer Amplifier

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Remove the parts in the order indicated in the following illustration and table.

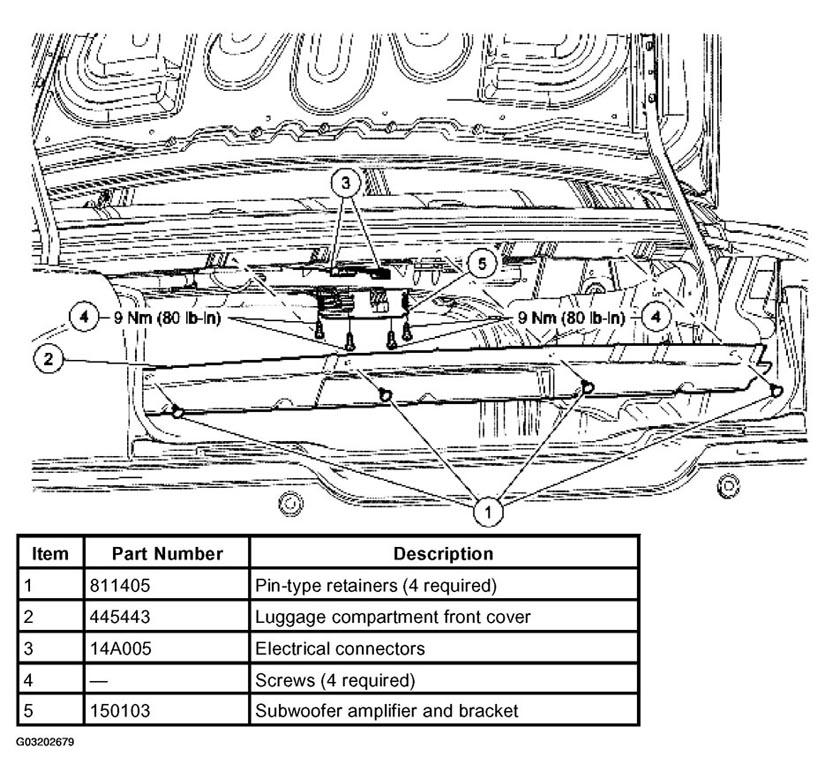

    Fig 1: Identifying Removal Order Of Subwoofer Amplifier
    G03202679Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
