Climate Control Seat Module Driver C3031a, Passenger C3036a
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

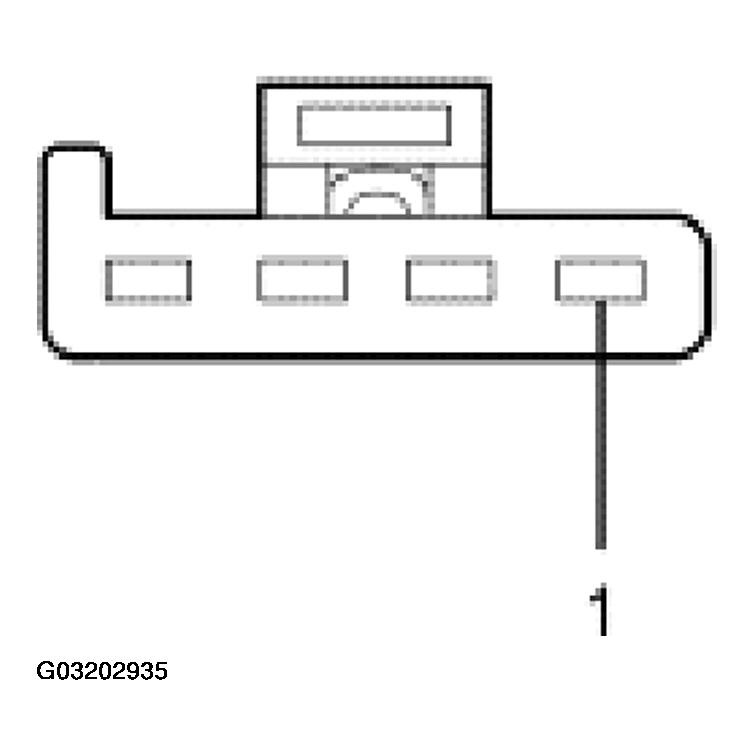

CLIMATE CONTROL SEAT MODULE DRIVER C3031A, PASSENGER C3036A PINS DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 (C3031a) | 4-HC21 (GY/OG) UBP communication circuit. | Less than 5 ohms between the DLC and the driver climate control seat module. Greater than 10,000 ohms to ground with all network modules disconnected. |
| 1 (C3036a) | 4-HC22 (GY) UBP communication circuit. | Less than 5 ohms between the DLC and the passenger climate control seat module. Greater than 10,000 ohms to ground with all network modules disconnected. |
