Driver Seat Module (DSM) C341c
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

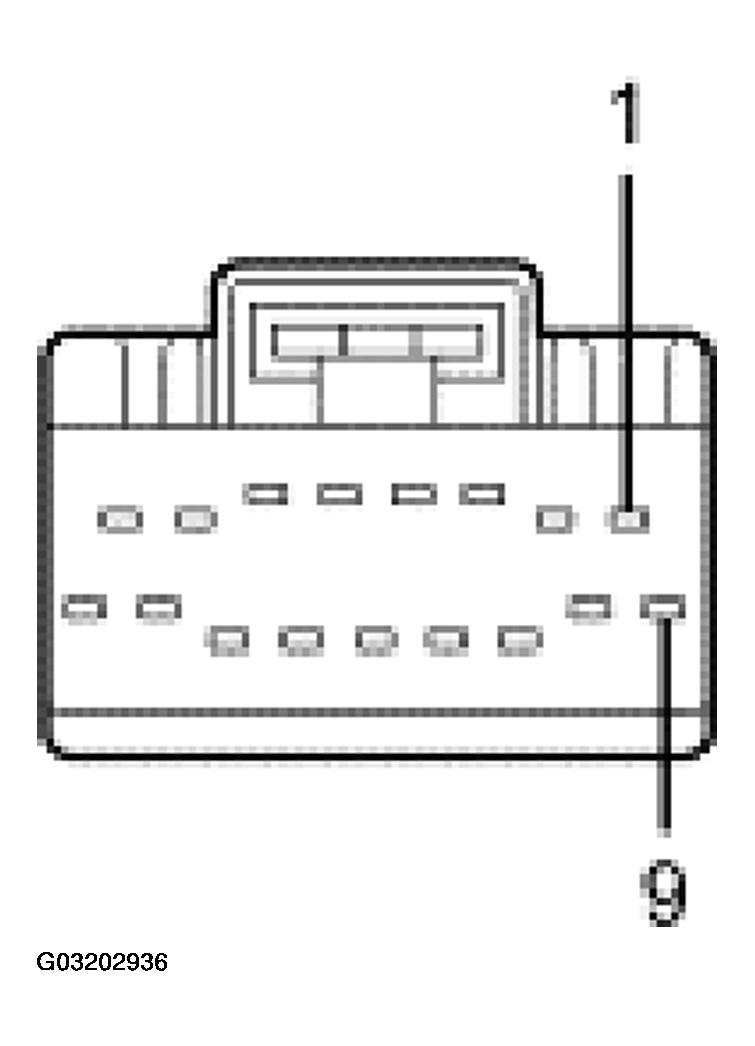

DRIVER SEAT MODULE (DSM) C341C PINS DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 4-AH80 (GY/WH) SCP communication circuit. | Less than 5 ohms between the DLC and the DSM. Greater than 10,000 ohms to ground with all network modules disconnected. |
| 9 | 5-AH80 (BU/OG) SCP communication circuit. | Less than 5 ohms between the DLC and the DSM. Greater than 10,000 ohms to ground with all network modules disconnected. |
