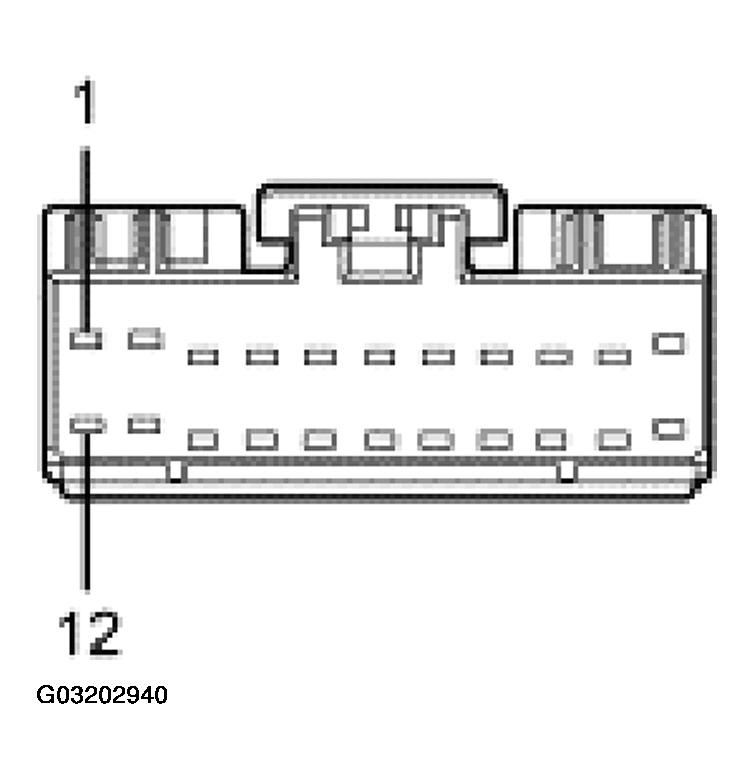

Dual Automatic Temperature Control (DATC) C228a
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
DUAL AUTOMATIC TEMPERATURE CONTROL (DATC) C228A PINS DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 5-FA10 (BU/YE) SCP communication circuit | Less than 5 ohms between the DATC and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected. |
| 12 | 4-FA10 (GY/BK) SCP communication circuit | Less than 5 ohms between the DATC and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected. |
