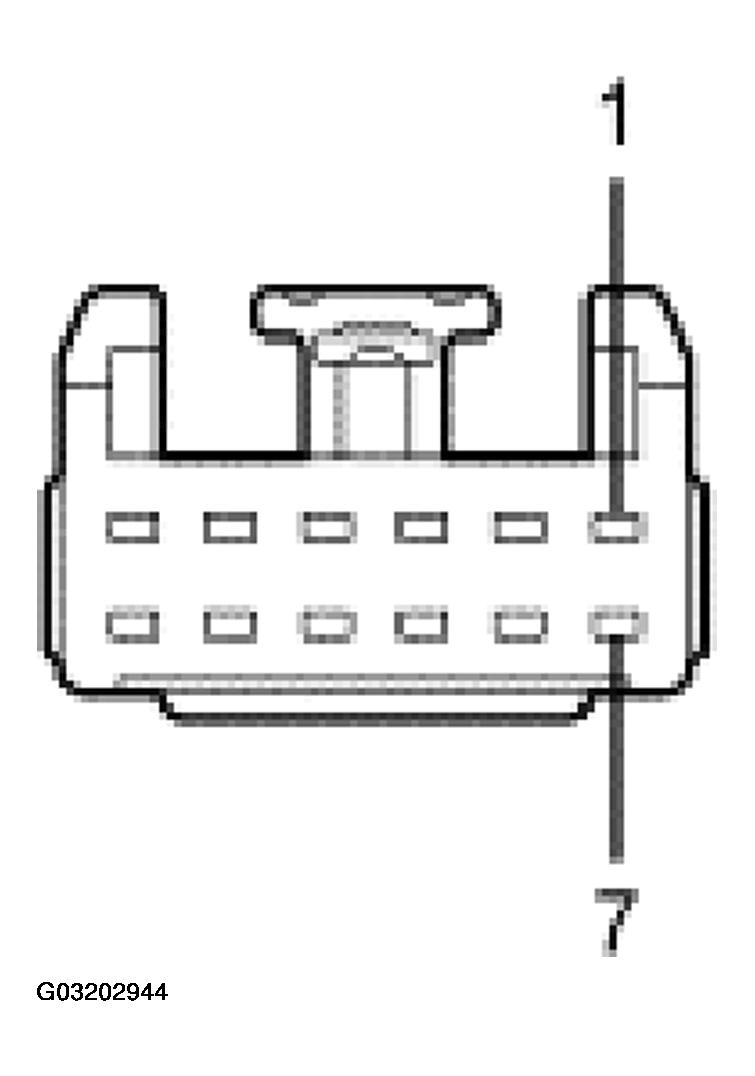

ELECTRONIC PARKING BRAKE MODULE C4205B PINS DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 4-CG16 (GY/RD)SCP communication circuit. | Less than 5 ohms between the electronic parking brake module and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected. |
| 7 | 5-CG16 (BU/RD) SCP communication circuit. | Less than 5 ohms between the electronic parking brake module and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected. |
