In-line C212M,C212F

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

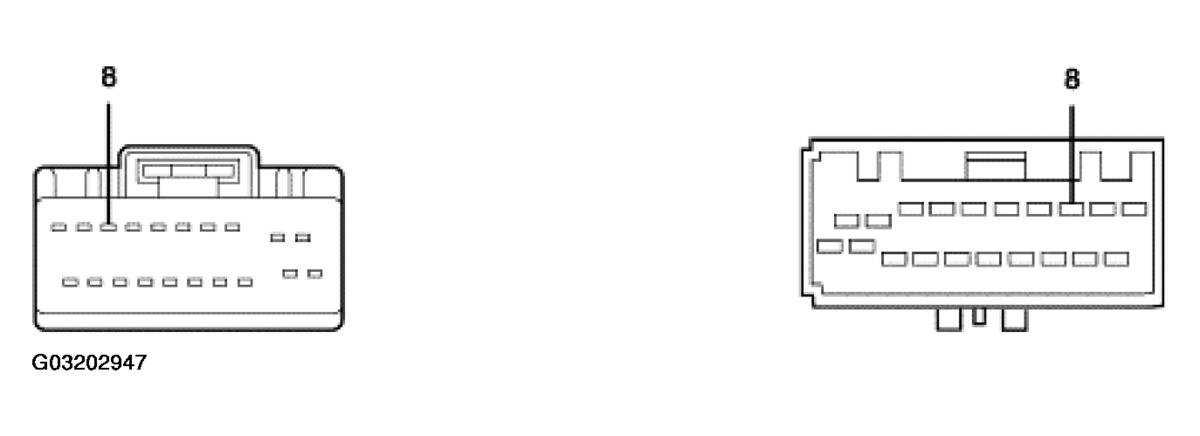

Fig 1: Identifying In-Line C212M,C212F Connector Pins

Courtesy of FORD MOTOR CO.

IN-LINE C212M,C212F PINS DESCRIPTION

Pin Number(s)	Circuit Designation/Description	Normal Condition/Measurement
8	4-EE10 (GY/BK) ISO 9141 communication circuit.	Less than 5 ohms between the module connector, DLC or inline connector. Greater than 10,000 ohms to ground with all network modules disconnected.
