Instrument Cluster C220b

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

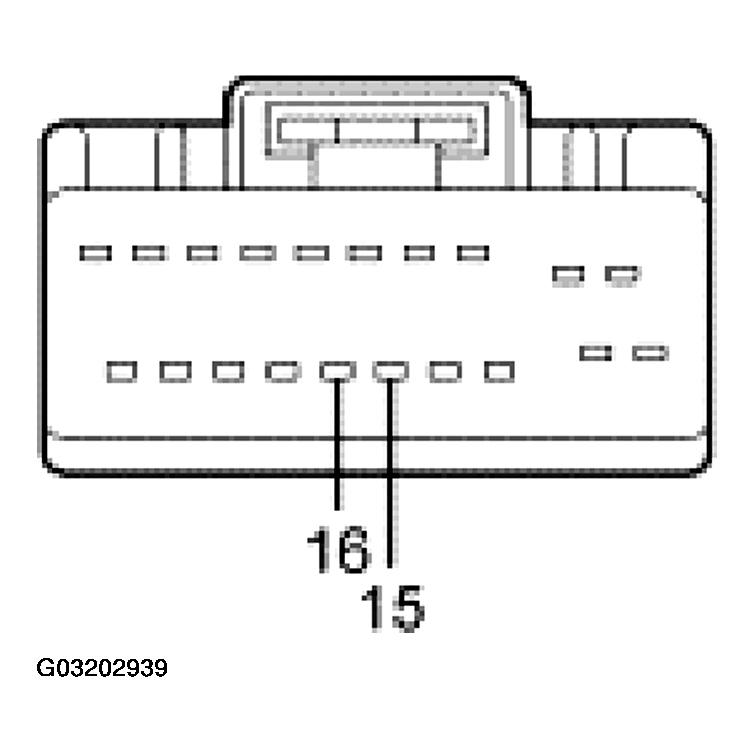

Fig 1: Identifying Instrument Cluster C220B Connector Pins

Courtesy of FORD MOTOR CO.

INSTRUMENT CLUSTER C220B PINS DESCRIPTION

Pin Number(s)	Circuit Designation/Description	Normal Condition/Measurement
15	4-EG8 (GY/VT) SCP communication circuit	Less than 5 ohms between the instrument cluster and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected.
16	5-EG8 (BU/WH) SCP communication circuit	Less than 5 ohms between the instrument cluster and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected.
