Driver Seat Module (DSM) C341c
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

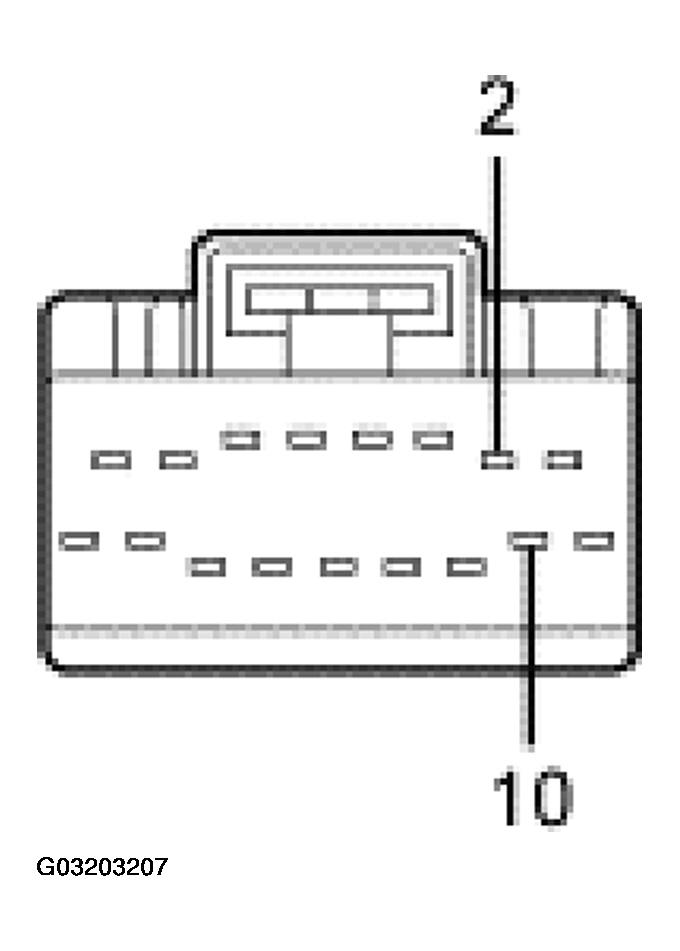

Courtesy of FORD MOTOR CO. DRIVER SEAT MODULE (DSM) C341C CONNECTOR PINS DESCRIPTION
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 2 |
91-AH80 (BN/WH) DSM ground. |
Less than 5 ohms between the DSM connector and ground. |
| 10 |
29-AH80 (OG/WH) DSM power supply. |
10 volts or greater at the DSM connector. |
