Front Electronic Module (FEM) C201c
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

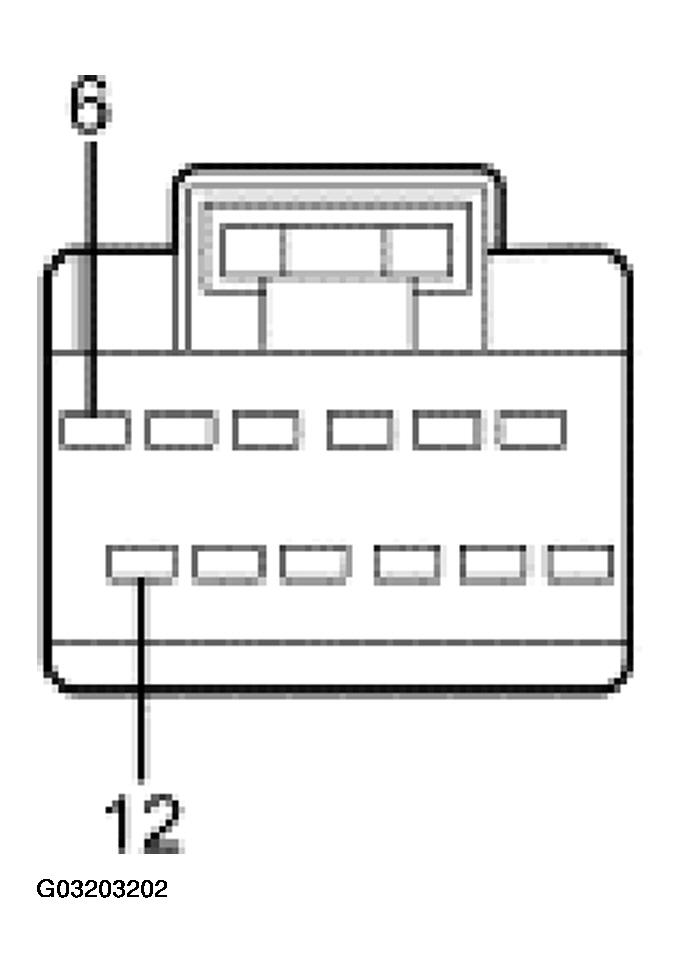

Courtesy of FORD MOTOR CO. FRONT ELECTRONIC MODULE (FEM) C201C CONNECTOR PINS DESCRIPTION
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 6 |
29-DK20 (OG/GN) FEM power supply. |
10 volts or greater at the FEM connector. |
| 12 |
31-DK20(BK) FEM ground. |
Less than 5 ohms between the FEM connector and ground. |
