Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Prior to the removal of the module, it is necessary to upload module configuration information to the appropriate diagnostic equipment. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE CONFIGURATION .

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable.
Remove the LH scuff plate.

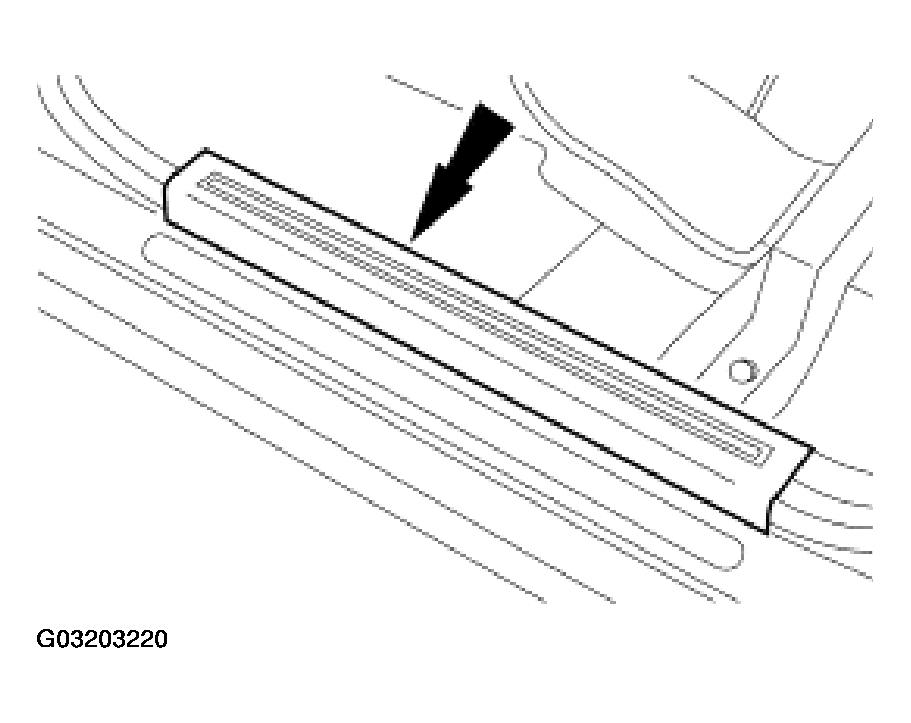

Fig 1: Removing LH Scuff Plate
Courtesy of FORD MOTOR CO.
Remove the LH A-pillar lower trim panel.

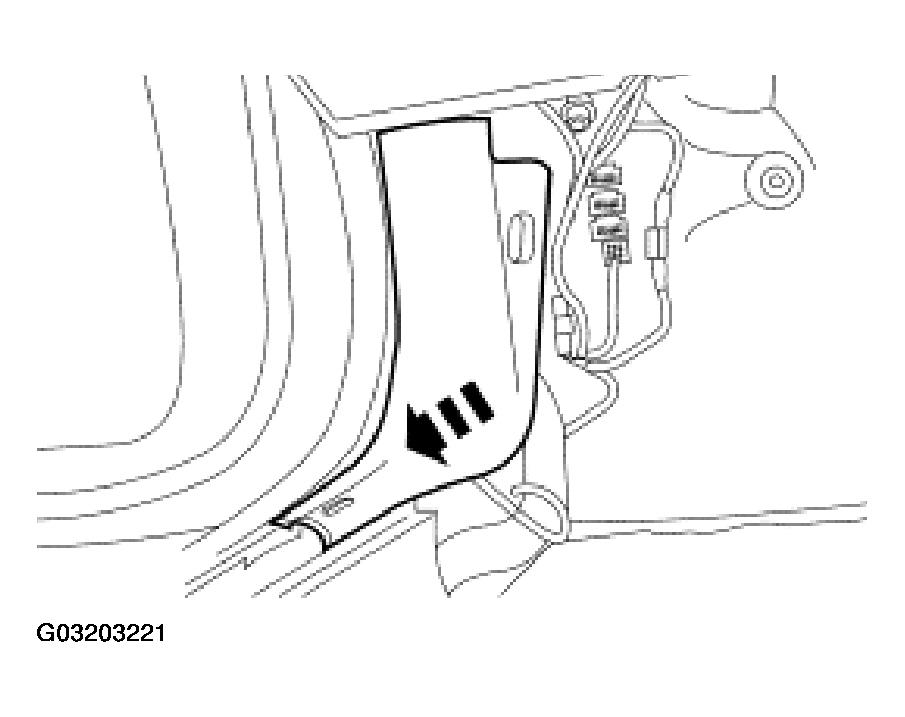

Fig 2: Removing LH A-Pillar Lower Trim Panel
Courtesy of FORD MOTOR CO.
Position the carpet aside.
Position aside the components in the order indicated in the following illustration and table.

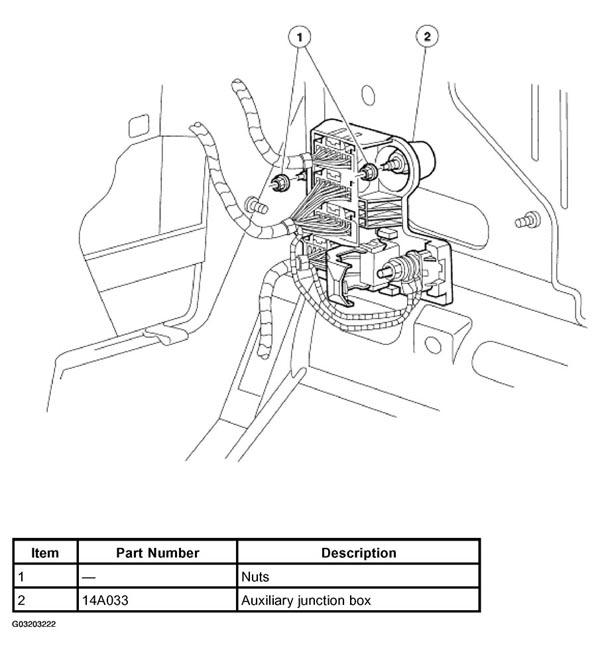

Fig 3: Identifying Removal Sequence Of Auxiliary Junction Box
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table.

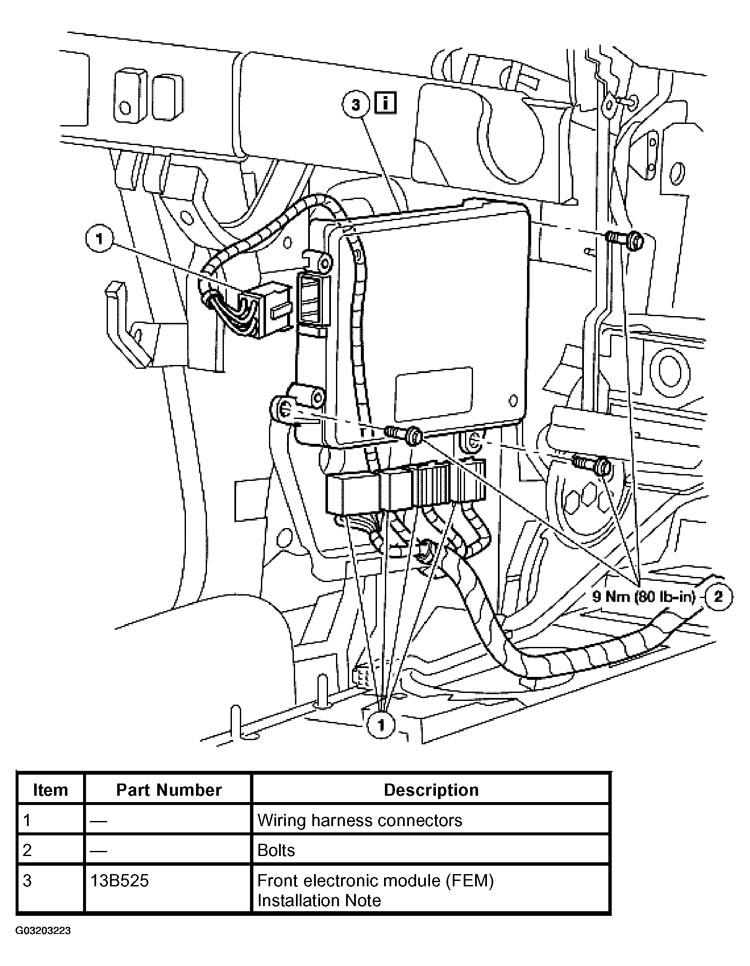

Fig 4: Identifying Removal Sequence Of Front Electronic Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 3: Front Electronic Module (FEM) Installation Note

Once the FEM is installed, it is necessary to download the module configuration information from the diagnostic tool into the new module. Refer to MODULE CONFIGURATION .
