Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Prior to the removal of the module, it is necessary to upload module configuration information to the appropriate diagnostic equipment. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE CONFIGURATION .

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable.
Position the RH rear luggage compartment trim panel aside.
Remove the components in the order indicated in the following illustration and table.

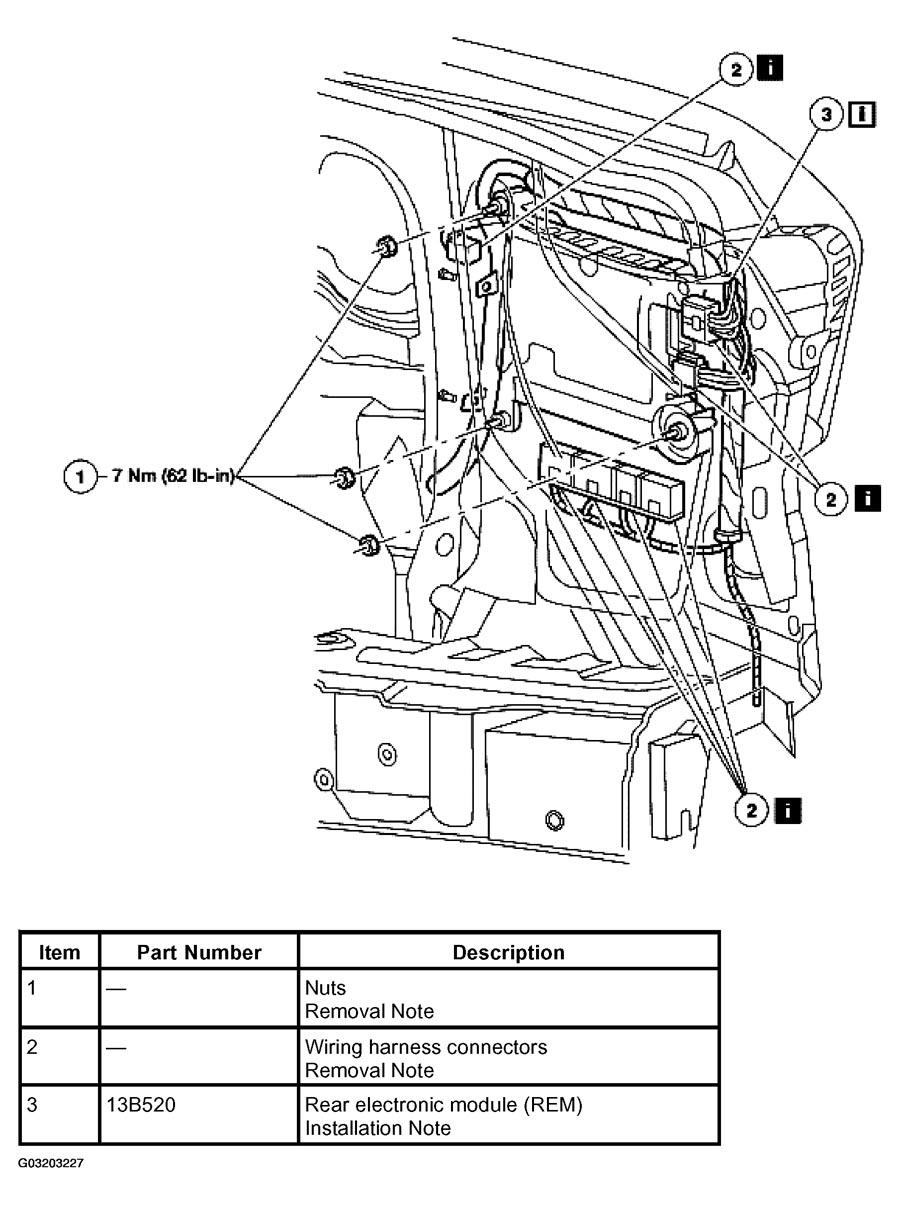

Fig 1: Identifying Removal Sequence Of Rear Electronic Module (REM)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 2: Rear Electronic Module (REM) Wiring Harness Connector Removal Note

It may be necessary to position the REM rearward to access some of the connectors.

Item 3: Rear Electronic Module (REM) Installation Note

Once the REM is installed, it is necessary to download the module configuration information from the diagnostic tool into the new module. Refer to MODULE CONFIGURATION .
