Compass Zone Adjustment

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to the compass calibration zone map to select the correct compass zone setting for your geographical location.

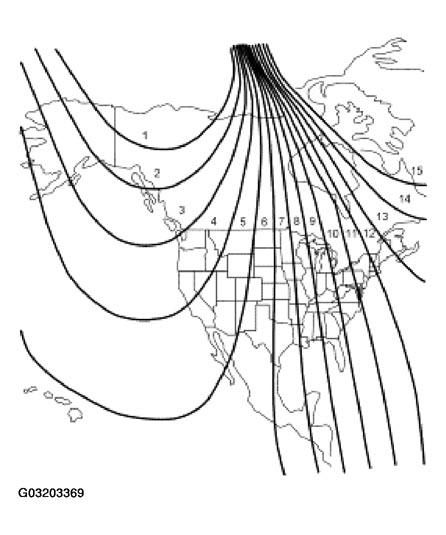

    Fig 1: Identifying Compass Calibration Zone Map
    G03203369Courtesy of FORD MOTOR CO.
  2. With the compass display turned on, press and hold the COMP button (for three seconds) until the display shows the current zone of operation.

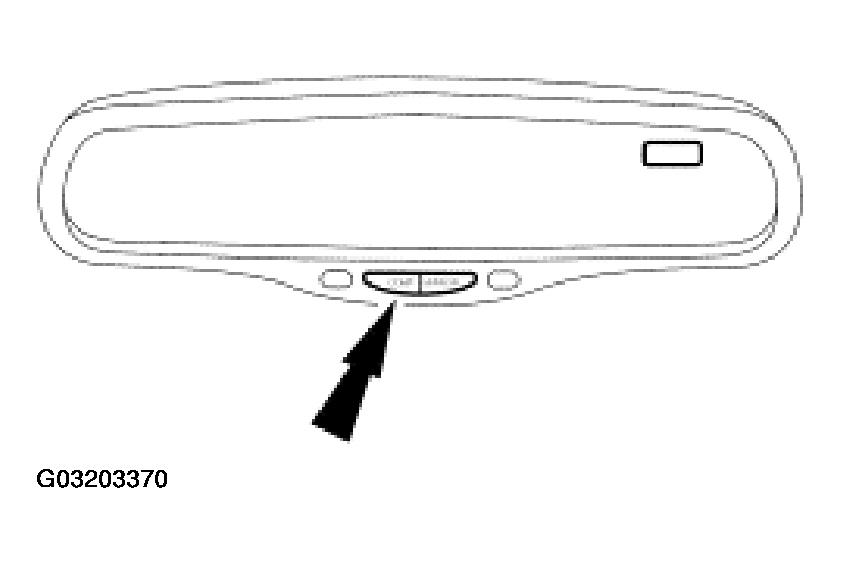

    Fig 2: Pressing And Hold Comp Button
    G03203370Courtesy of FORD MOTOR CO.
  3. Release the button.
  4. Press the COMP button repeatedly to cycle the zone number display. Set the zone display number to match the vehicle location on the compass calibration zone map.
  5. Releasing the switch for 10 seconds will exit the zone setting mode.
