Global Positioning System (GPS) Antenna

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Remove the defroster duct. For additional information, refer to ENGINE COOLING .
  3. Remove the components in the order indicated in the following illustration and table.

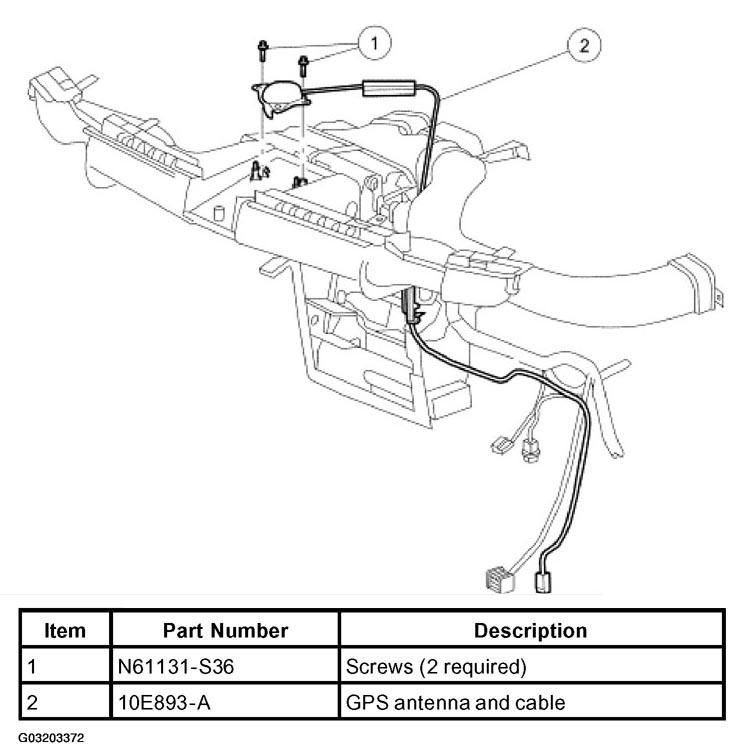

    Fig 1: Removing Global Positioning System (GPS) Antenna
    G03203372Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
