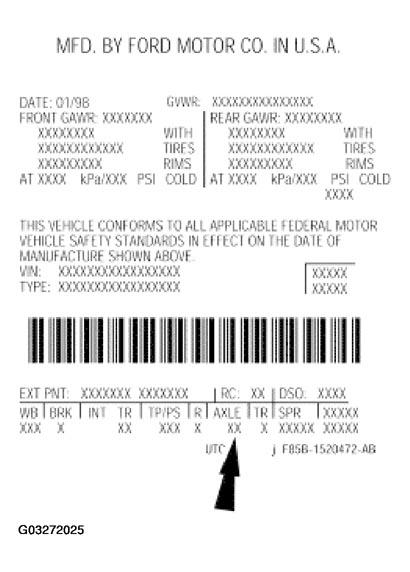

Axle Code
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
The following lists the gear ratios on axles.
- 86 - 3.73 non-limited slip (7.5-inch)
- 87 - 4.10 non-limited slip (7.5-inch)
- 95 - 3.55 non-limited slip (8.8-inch)
- 96 - 3.73 non-limited slip (8.8-inch)
- 97 - 4.10 non-limited slip (8.8-inch)
- F6 - 3.73 limited slip (7.5-inch)
- R5 - 3.55 limited slip (8.8-inch)
- R6 - 3.73 limited slip (8.8-inch)
- R7 - 4.10 limited slip (8.8-inch)
