Spring Codes
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

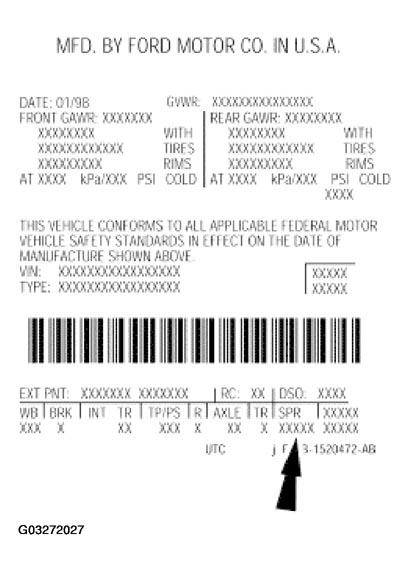

Spring codes are listed as a two-part code. The first character identifies the front spring/torsion bar code.
The second character identifies the rear spring code.
FRONT SPRING CODES
- 2 - F87A-5310-BA (coil)
- 3 - 1L5C-5310-LA (coil)
- 5 - 1L5C-5310-KA (coil)
- A - F87A-5310-AA (coil)
- C - 1L5C-5310-MA (coil)
- D - F87A-5310-DA (coil)
- E - F87A-5310-EA (coil)
- J - F87A-5310-JA (coil)
FRONT TORSION BAR CODES
- 1 - F67A-5B326-FA (RH)
- 1 - F67A-5B327-FA (LH)
- B - F57A-5B326-BC (RH)
- B - F57A-5B327-BC (LH)
- F - F57A-5B326-FC (RH)
- F - F57A-5B327-FC (LH)
REAR SPRING CODES
- 3 - 4L54-5560-DA (leaf)
- C - 3L54-5560-PB (leaf)
- K - 4L54-5560-EA (leaf)
