Connecting Rod - Piston Pin Side Clearance

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Measure the clearance between the connecting rod and the piston. Verify the measurement is within specification.
- Refer to the appropriate ENGINE article for additional information.
- If out of specification, install new components as necessary. Refer to the appropriate ENGINE article.

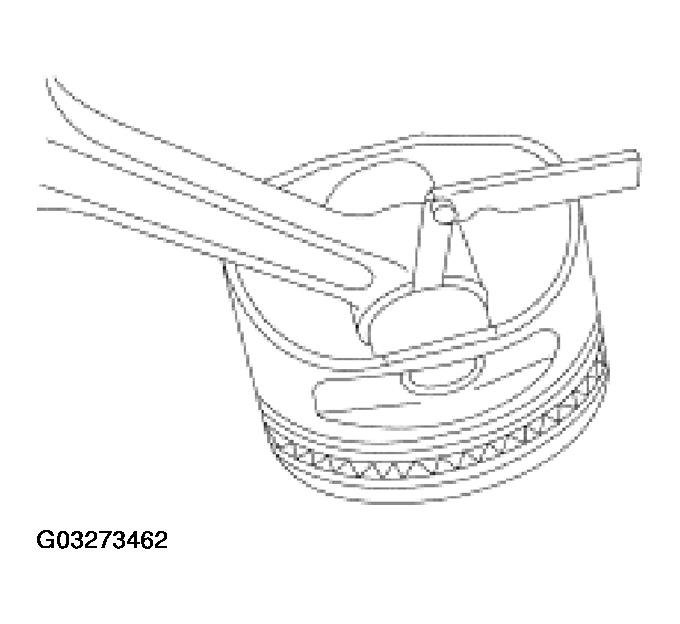

  Fig 1: Measuring Clearance Between Connecting Rod And Piston
  Courtesy of FORD MOTOR CO.
