Push Rods - Inspection

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not attempt to straighten push rods.

Check the ends of the push rods for nicks, grooves, roughness or excessive wear. Install new push rods as necessary. Refer to the appropriate ENGINE article.
- The push rods can be checked for straightness while they are installed in the engine by rotating them with the valve closed.
- They also can be checked using a Dial Indicator with Bracketry.

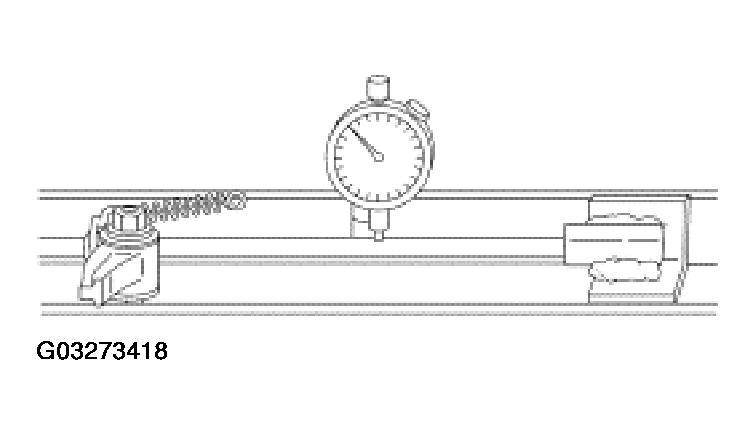

  Fig 1: Checking Push Rods For Straightness
  Courtesy of FORD MOTOR CO.
If the push rod is bent beyond specifications, install a new push rod. Refer to the appropriate ENGINE article.
