Valve - Spring Installed Length

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Measure the installed length of each valve spring.
- Refer to the appropriate ENGINE article for additional information.
- If out of specification, install new components. Refer to the appropriate ENGINE article.

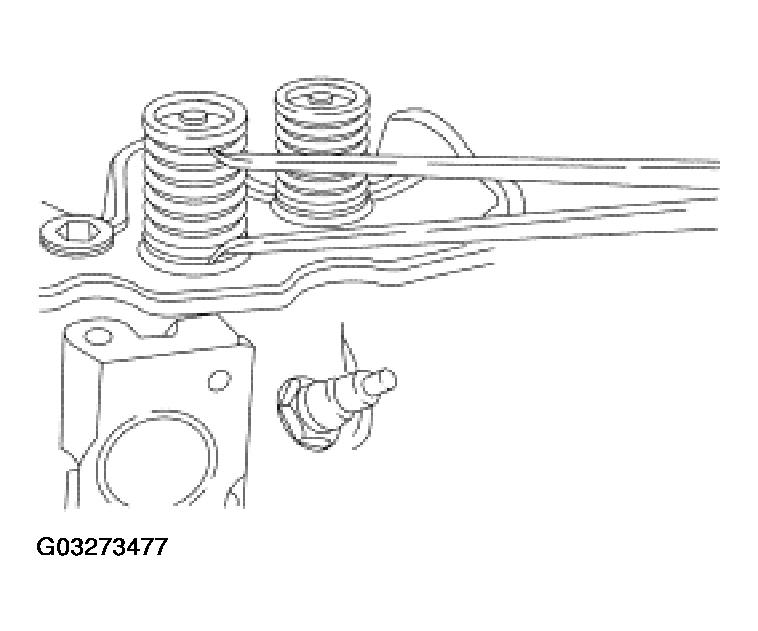

  Fig 1: Measuring Installed Length Of Valve Springs
  Courtesy of FORD MOTOR CO.
