Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the powertrain control module (PCM) electrical connector.

Fig 1: Removing PCM Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the nuts and the PCM cover.

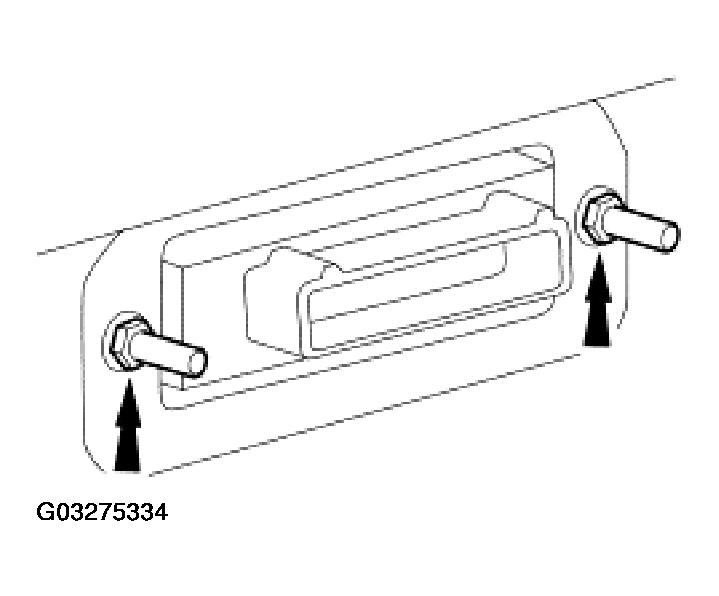

Fig 2: Removing PCM Cover
Courtesy of FORD MOTOR CO.
Remove the PCM.
To install, reverse the removal procedure.
