Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the speed control actuator electrical connector.

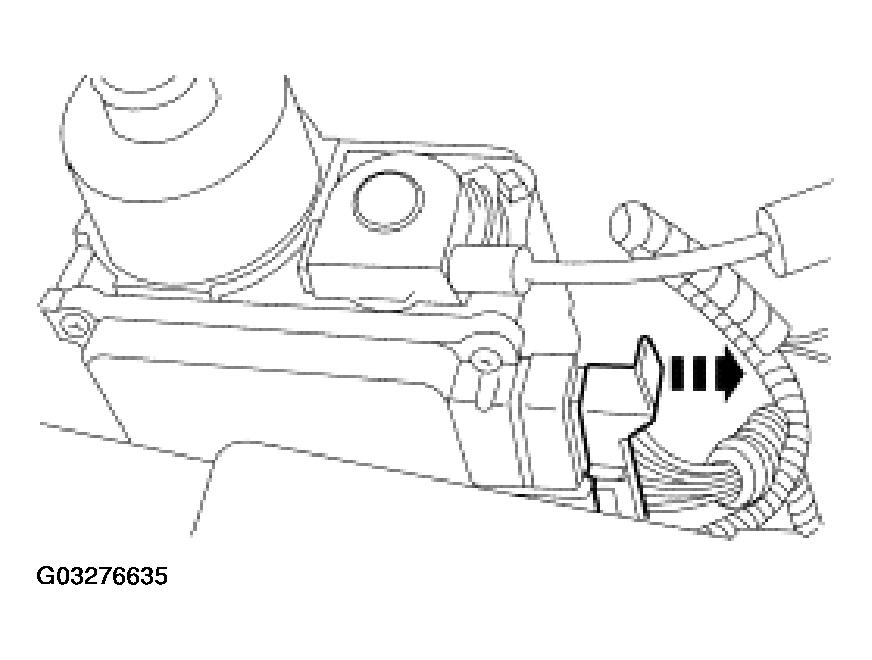

Fig 1: Disconnecting Speed Control Actuator Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the speed control cable cap from the speed control actuator.
- Push in the locking arm on the speed control cable cap then rotate the cap counterclockwise.

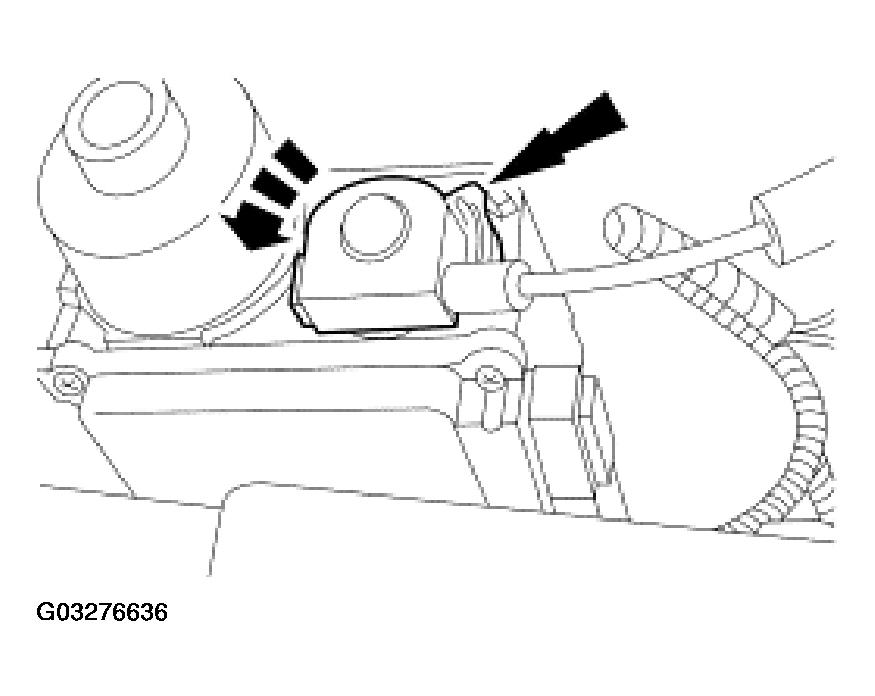

  Fig 2: Removing Speed Control Cable Cap From Speed Control Actuator
  Courtesy of FORD MOTOR CO.
Remove the speed control cable.
1. Press the spring retainer.
2. Slide the core wire end out of the speed control actuator pulley and remove the speed control cable.

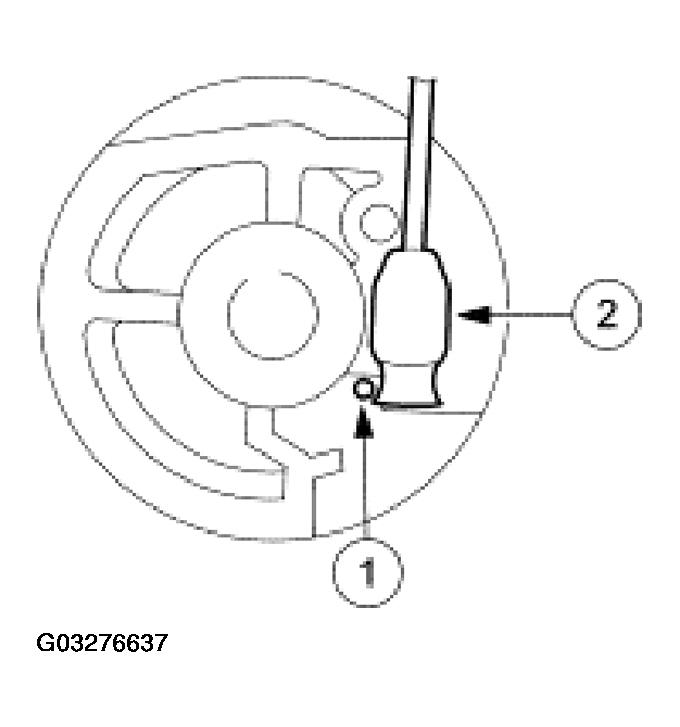

  Fig 3: Removing Speed Control Cable
  Courtesy of FORD MOTOR CO.
Remove the speed control actuator bracket bolt and remove the servo.

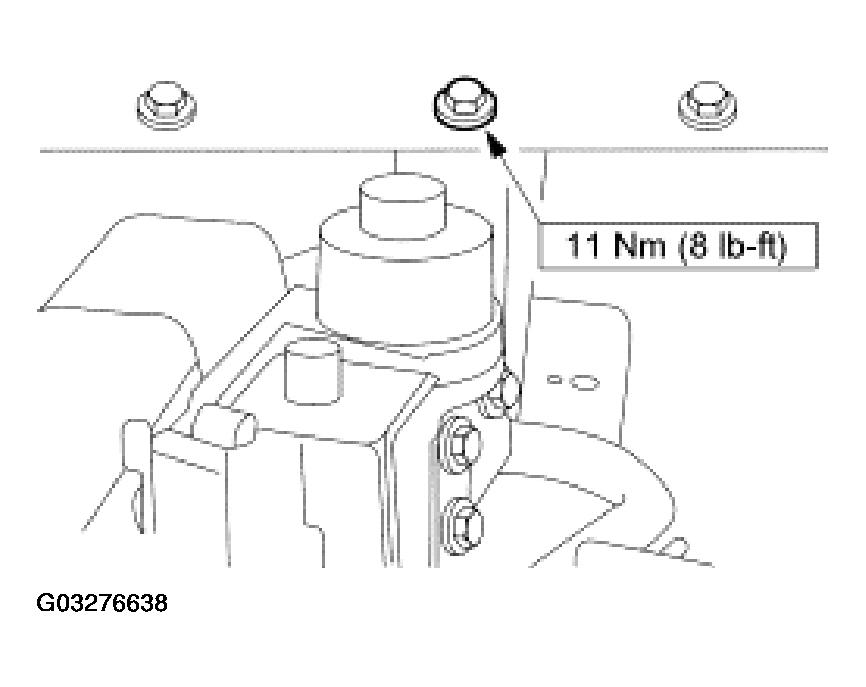

Fig 4: Removing Speed Control Actuator Bracket Bolt & Removing Servo
Courtesy of FORD MOTOR CO.
Remove the bolts and separate the speed control actuator bracket from the speed control actuator.

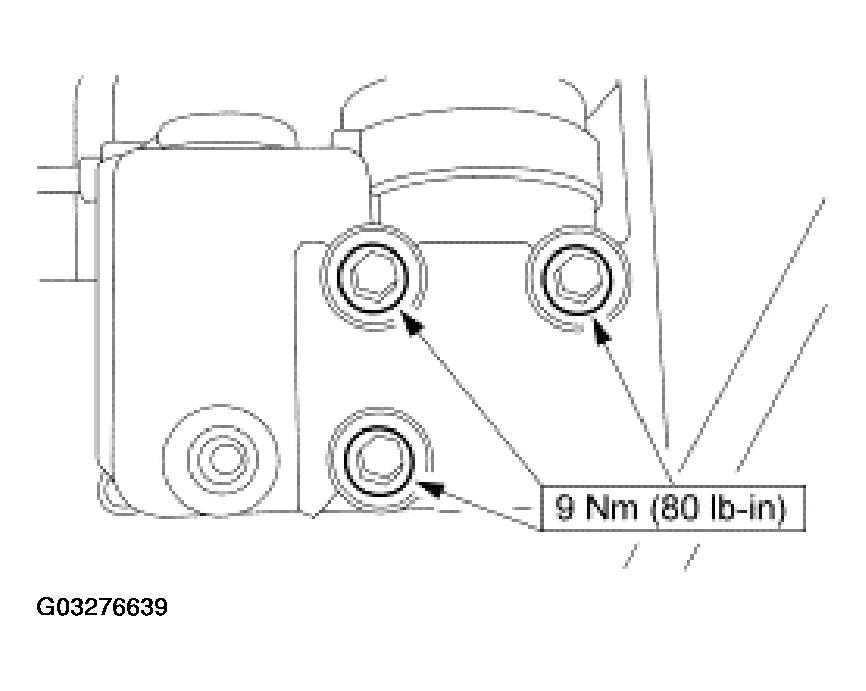

Fig 5: Removing Speed Control Actuator Bracket From Speed Control Actuator
Courtesy of FORD MOTOR CO.

NOTE: Make sure the rubber seal is fully seated onto the speed control cable cap.

To install, reverse the removal procedure.
