Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering wheel. For additional information, refer to STEERING COLUMN .

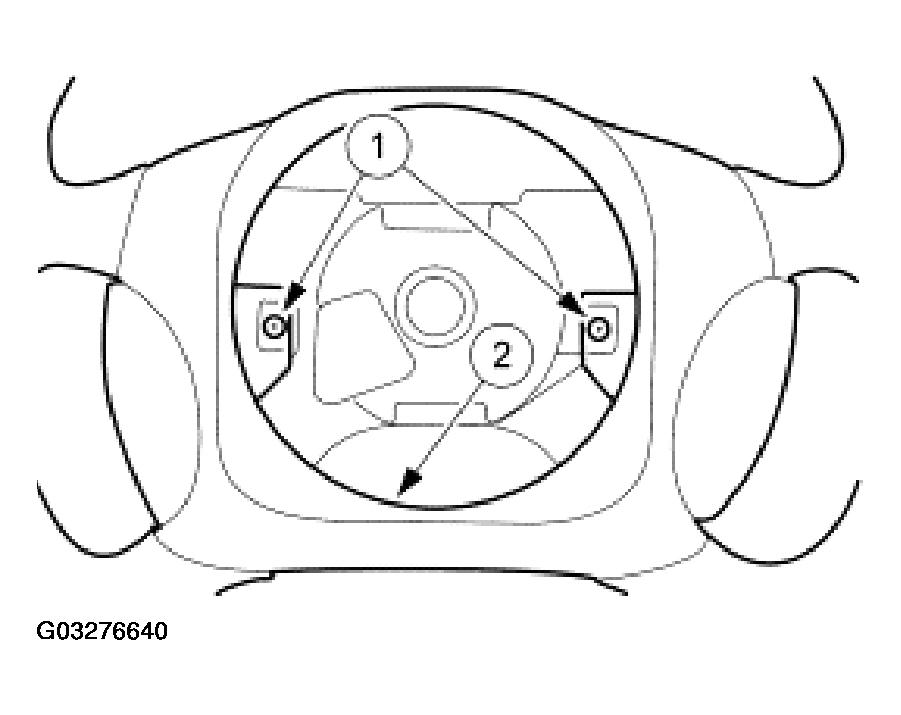

Remove the steering wheel rear cover.
1. Remove the screws.
2. Remove the steering wheel rear cover.

  Fig 1: Removing Steering Wheel Rear Cover
  Courtesy of FORD MOTOR CO.

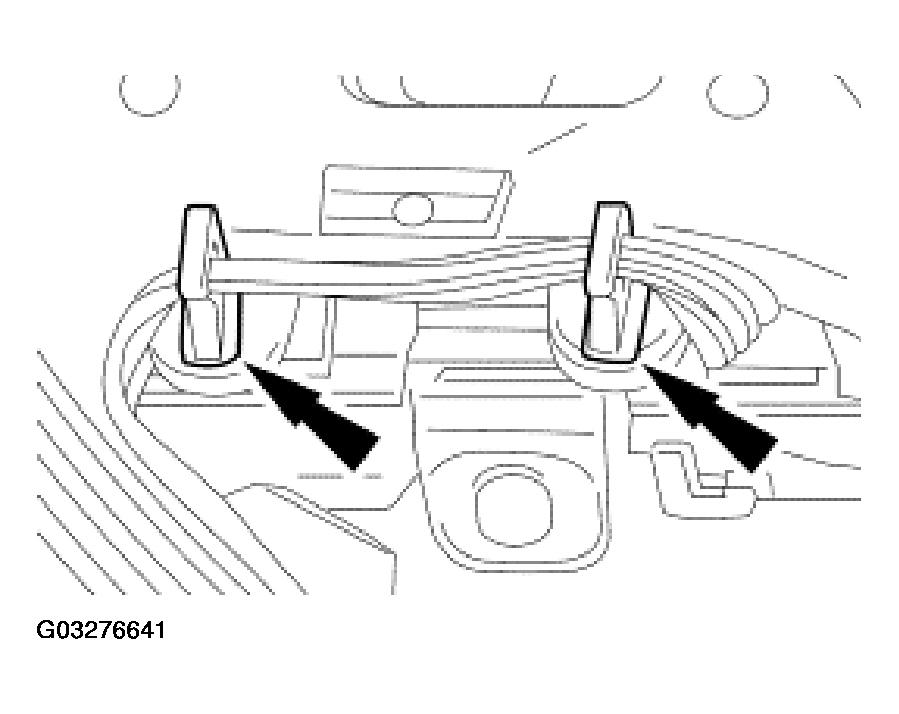

Remove the ribbon harness from the clips.

Fig 2: Removing Ribbon Harness From Clips
Courtesy of FORD MOTOR CO.

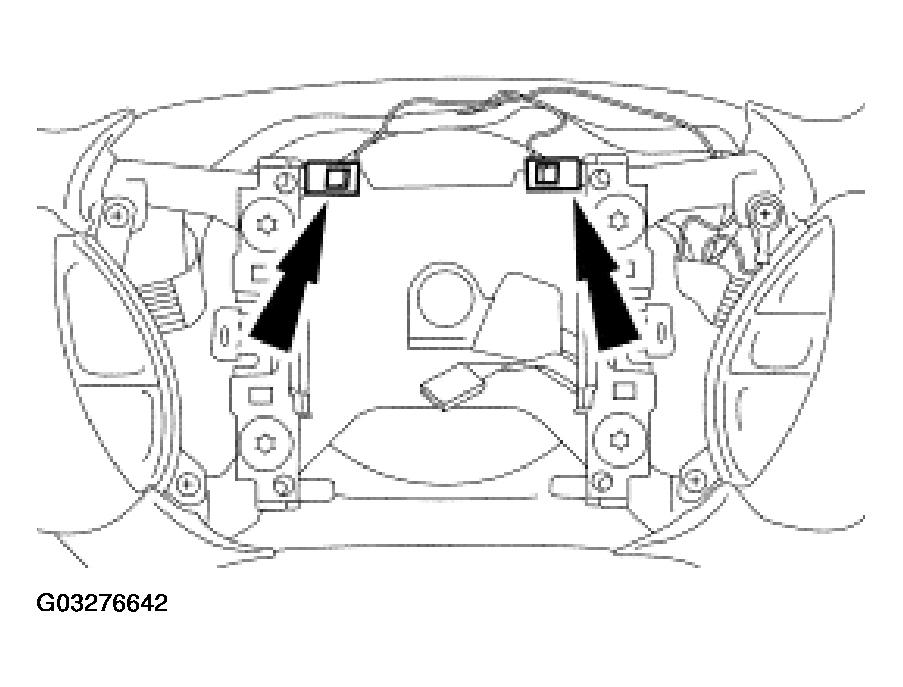

Remove the horn contact electrical connectors.

Fig 3: Removing Horn Contact Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the right side horn contact.
1. Remove the screws.
2. Remove the contact.

  Fig 4: Removing Right Side Horn Contact
  Courtesy of FORD MOTOR CO.

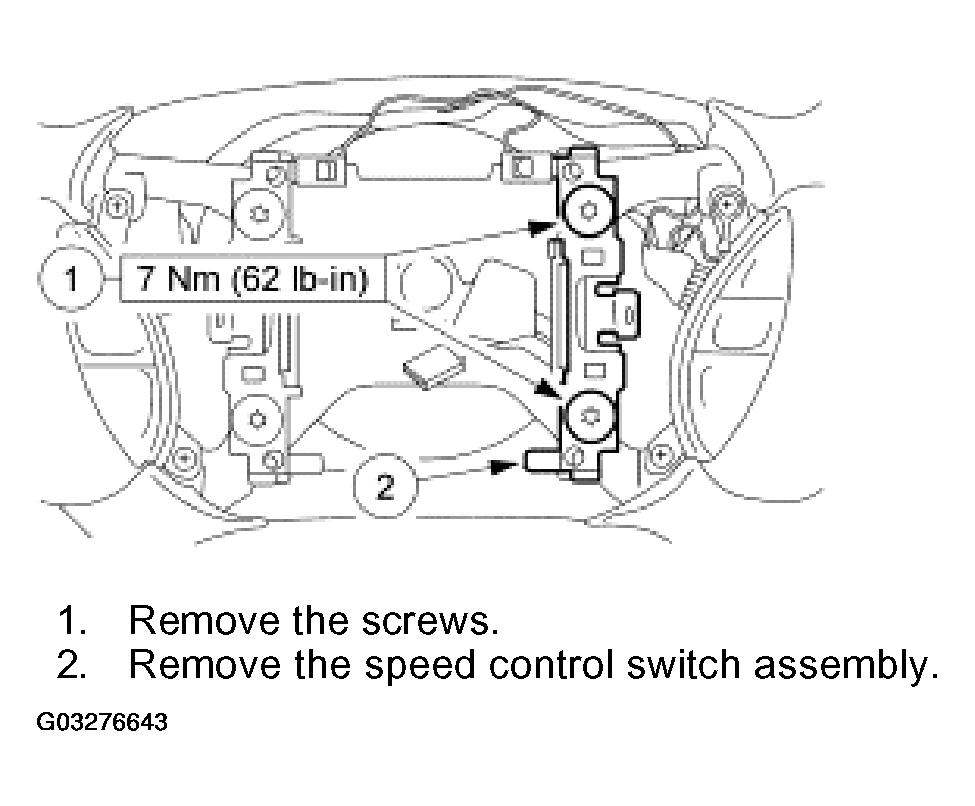

Remove the speed control switch assembly.
1. Remove the screws.
2. Remove the speed control switch assembly.

  Fig 5: Removing Speed Control Switch Assembly
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
