Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the audio unit. For additional information, refer to AUDIO UNIT .
Remove the screws. Disengage the spring clips. Detach the instrument panel finish panel (044D70).

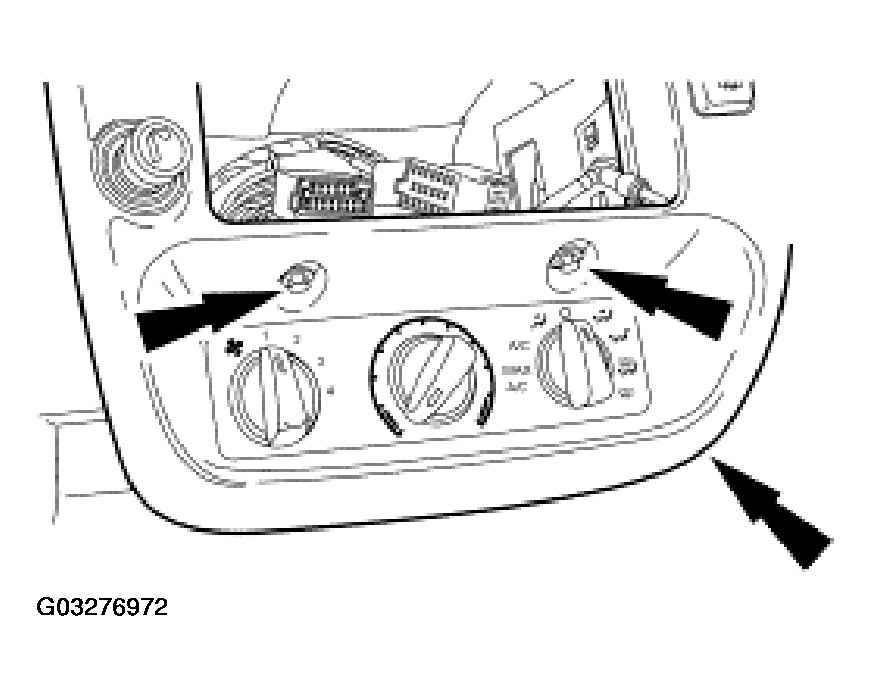

Fig 1: Detaching Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.
Disconnect the cigar lighter electrical connectors.

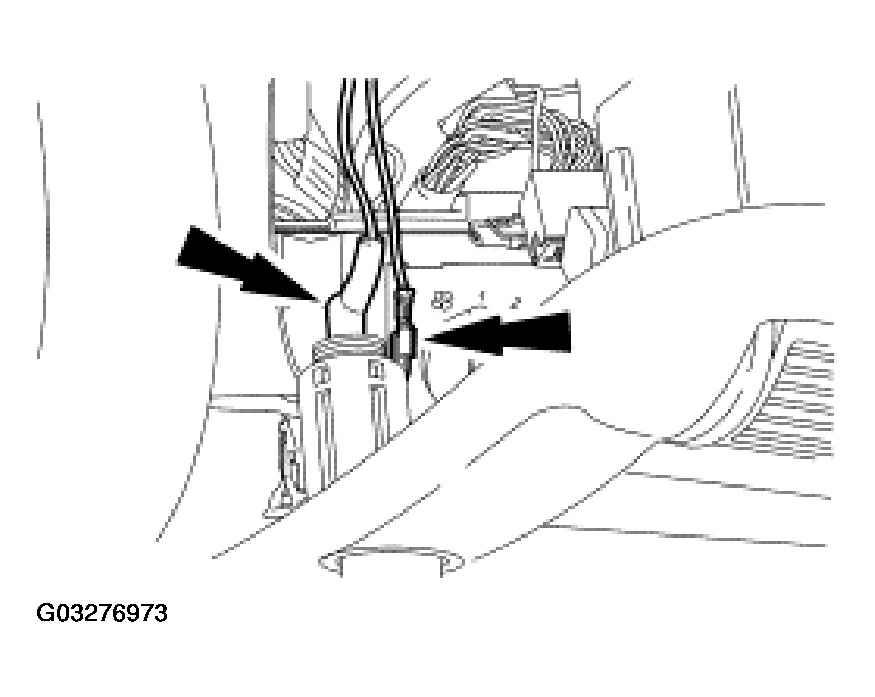

Fig 2: Disconnecting Cigar Lighter Electrical Connectors
Courtesy of FORD MOTOR CO.

NOTE: The number and location of the electrical connectors will vary dependent on vehicle equipment.

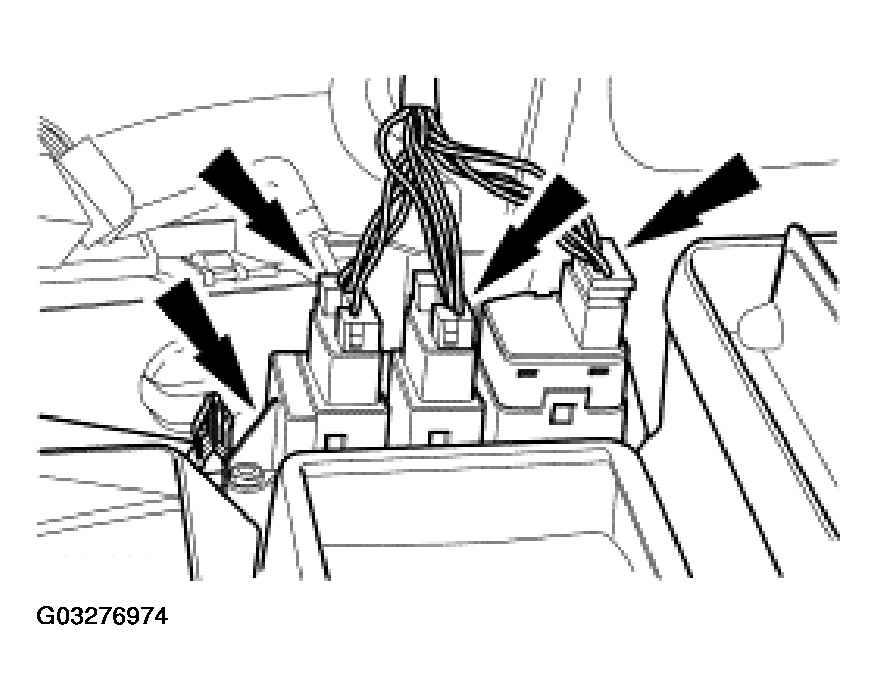

Fig 3: Disconnecting Electrical Connectors & Removing Instrument Panel Finish Panel

Courtesy of FORD MOTOR CO.

Disconnect the electrical connectors. Remove the instrument panel finish panel.
Remove the screws and the climate control assembly (19980).

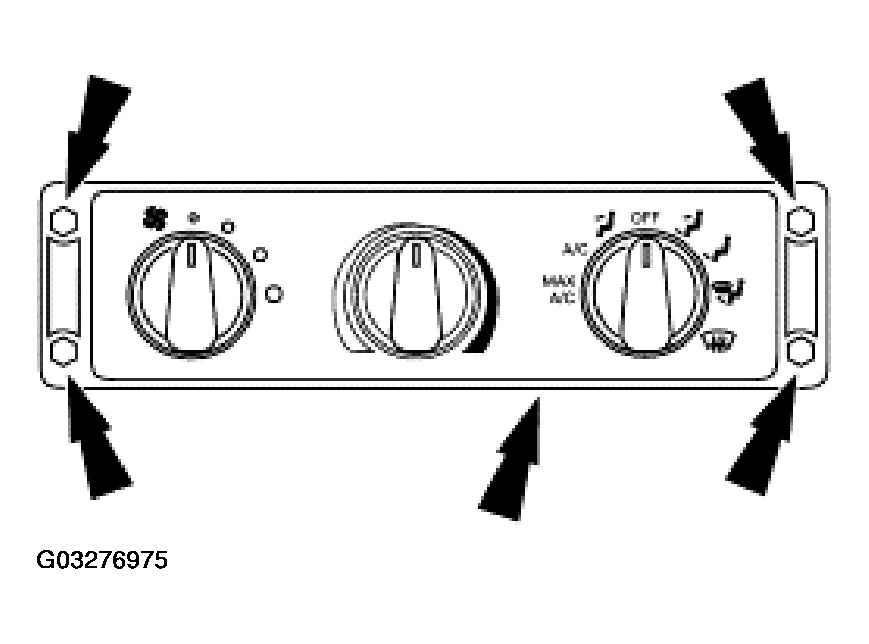

Fig 4: Removing Climate Control Assembly
Courtesy of FORD MOTOR CO.
Disconnect the climate control assembly.
- Disconnect the electrical connectors.
- Disconnect the vacuum harness connector.

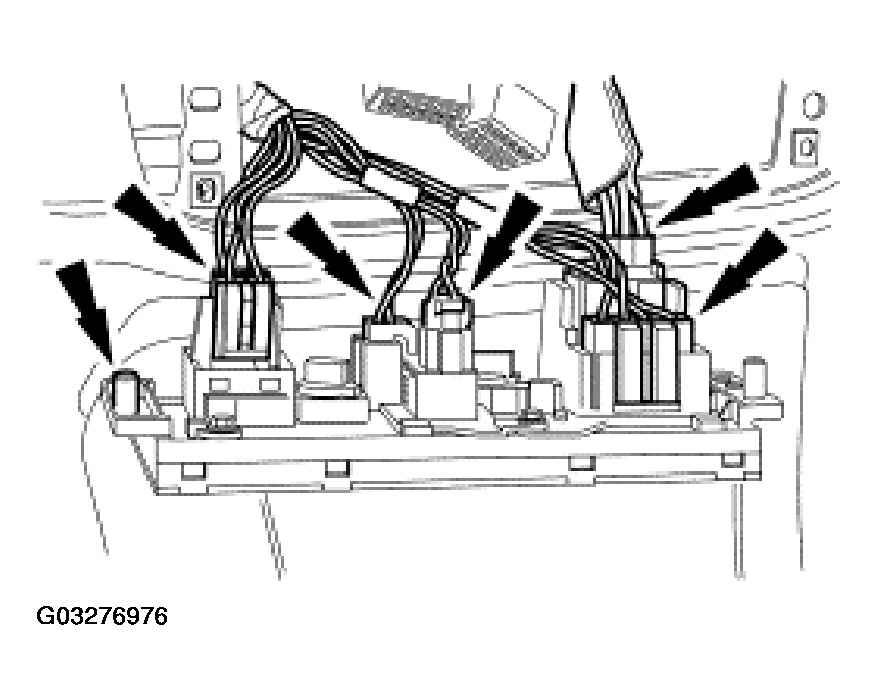

  Fig 5: Disconnecting Climate Control Assembly
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
