Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the climate control assembly. For additional information, refer to CLIMATE CONTROL ASSEMBLY .
Gently pull and remove the function selector knob.

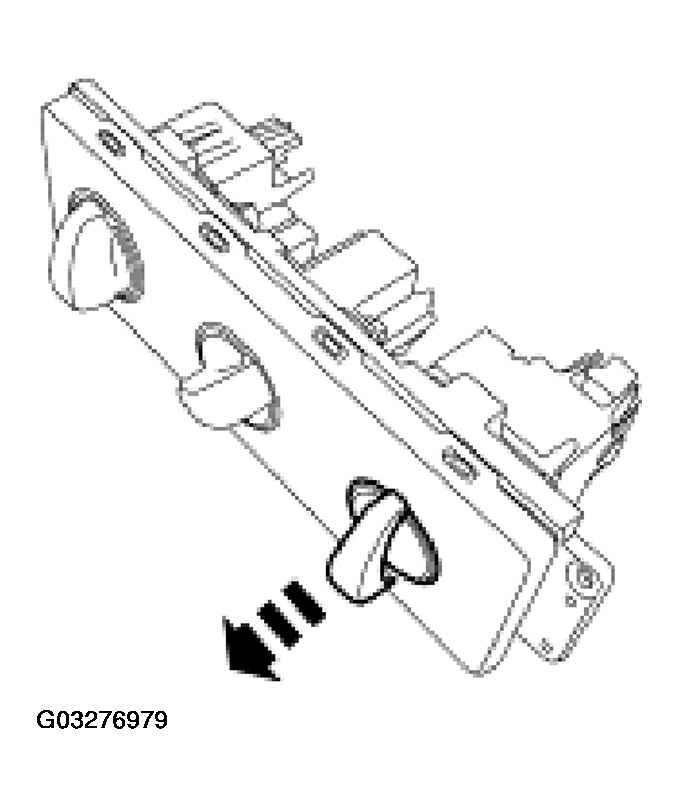

Fig 1: Removing Function Selector Knob
Courtesy of FORD MOTOR CO.
Release the clips and remove the function selector switch.

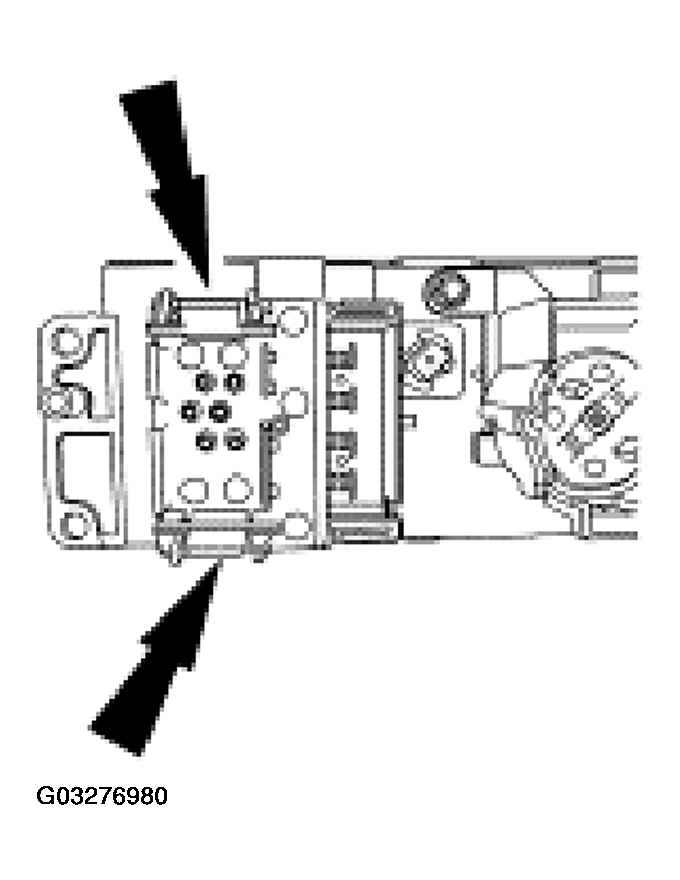

Fig 2: Removing Function Selector Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
