Audio Unit

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

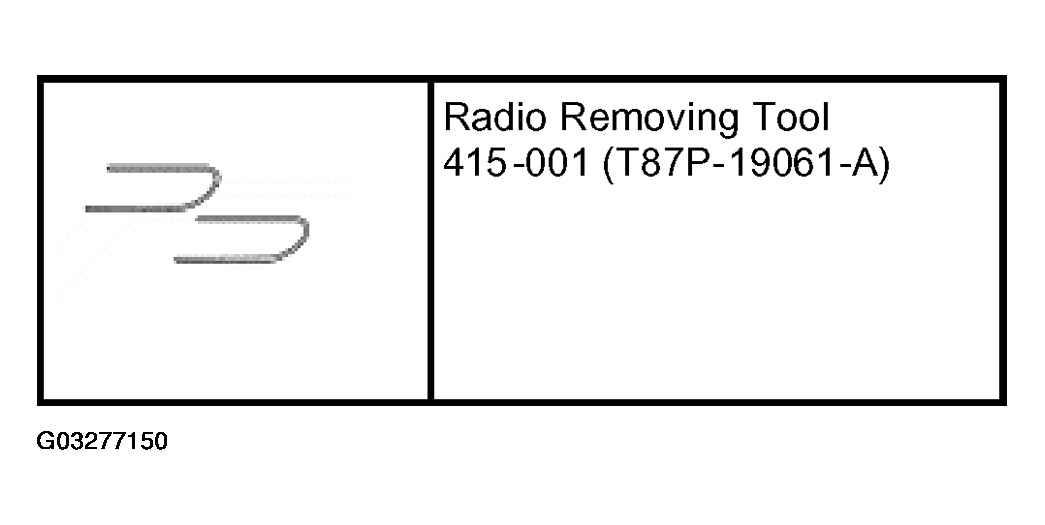

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

Using the special tool, remove the audio unit.
- Disconnect the electrical connectors and the antenna lead-in cable.

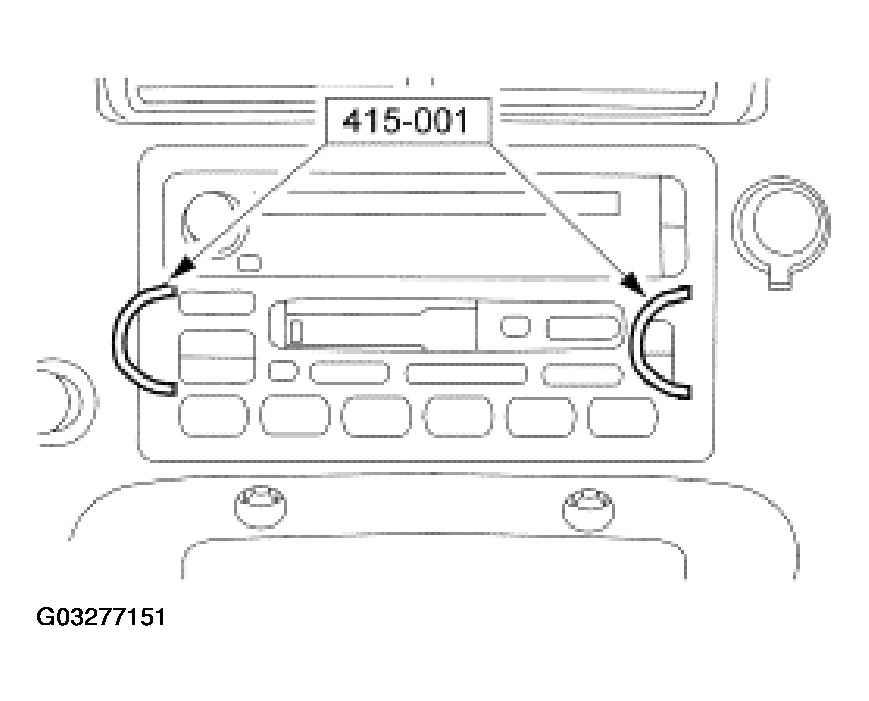

  Fig 2: Removing Audio Unit
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
