Brake Fluid Level Indicator Switch C124
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

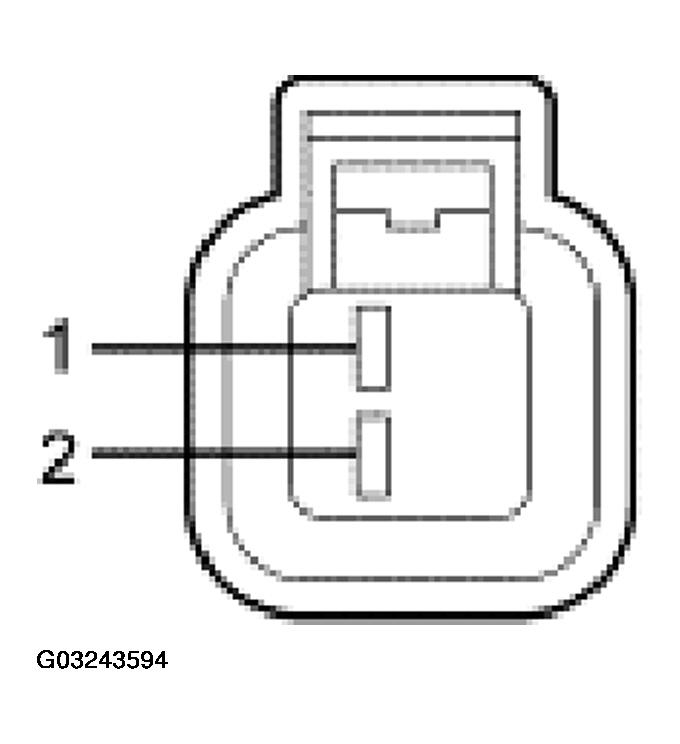

PIN NUMBER (S) AND CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1305 (DB) brake fluid level switch sense circuit | Less than 5 ohms resistance between the SJB and the brake fluid level switch connectors (both disconnected). |
| 2 | 512 (TN/LG) brake fluid indicator level switch signal return to SJB | Less than 5 ohms between the brake fluid level indicator switch and the SJB connectors (both disconnected). |
