Driver Seat Module C341d
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

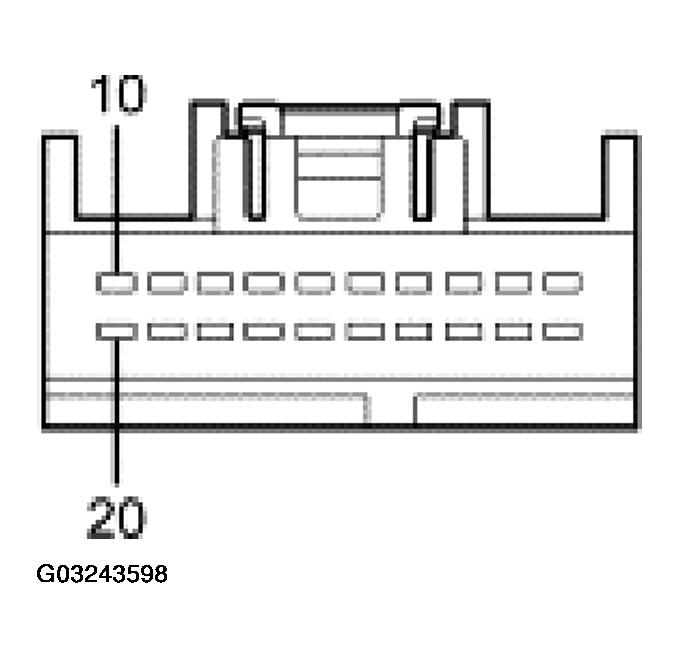

PIN NUMBER (S) AND CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 10 | 955 (GY) adjustable pedal motor potentiometer signal return to the DSM | Less than 5 ohms resistance between the DSM and the adjustable pedal motor connectors (both disconnected). |
| 20 | 958 (GY/RD) voltage reference to adjustable pedal motor potentiometer from the DSM | Less than 5 ohms resistance between the DSM and the adjustable pedal motor connectors (both disconnected). |
