Brake Pedal: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The adjustable pedal assembly is shown, the fixed pedal assembly is similar.

If equipped with adjustable pedals, make sure they are in the full forward position.
Remove the instrument panel steering column reinforcement. For additional information, refer to BODY SYSTEM - INTERIOR
Release the LH demister duct from the plenum chamber and remove the demister duct.

Remove the parts in the order indicated in the following illustration and table.

PARTS REMOVAL STEPS

Part	Steps
Fixed pedal assembly	1-5, 7, 8, 10
Adjustable pedal assembly	1-10
Adjustable pedal motor assembly	9, 11-13
Drive cable assembly	11, 12

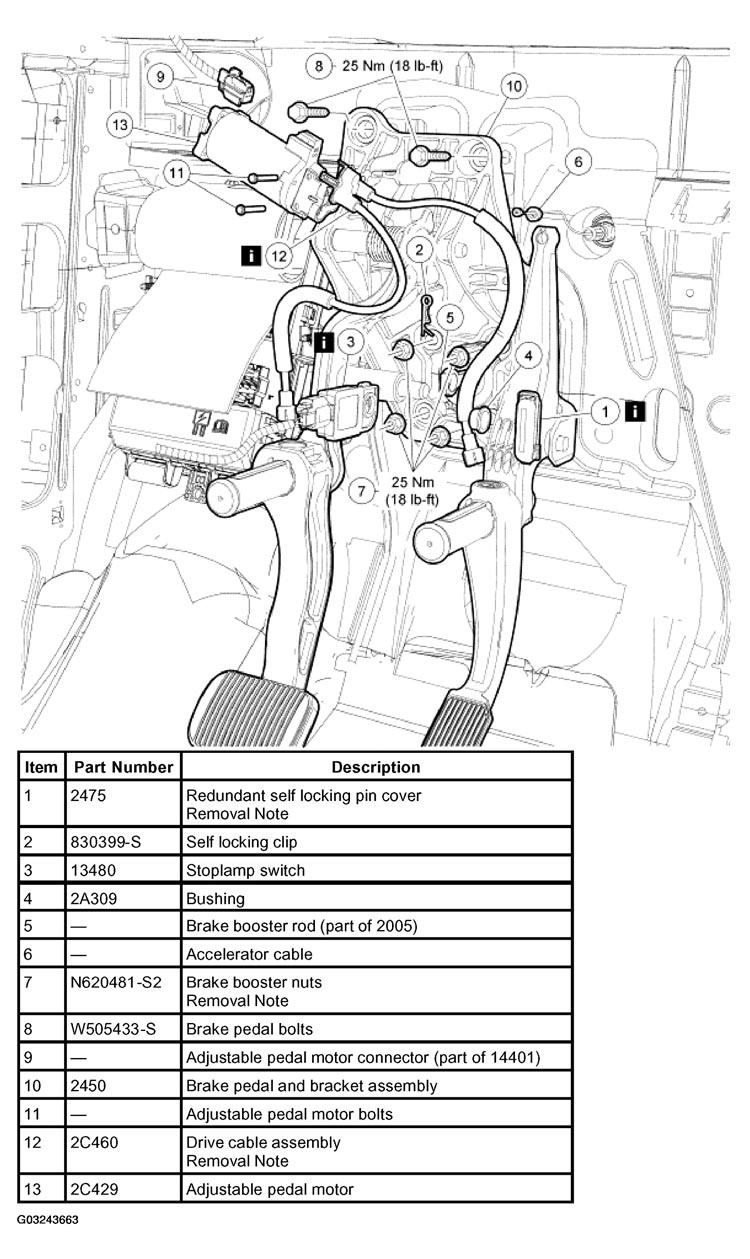

Fig 1: Brake Pedal Components Removal Sequence

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
