Steering Wheel Rotation Sensor C226
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

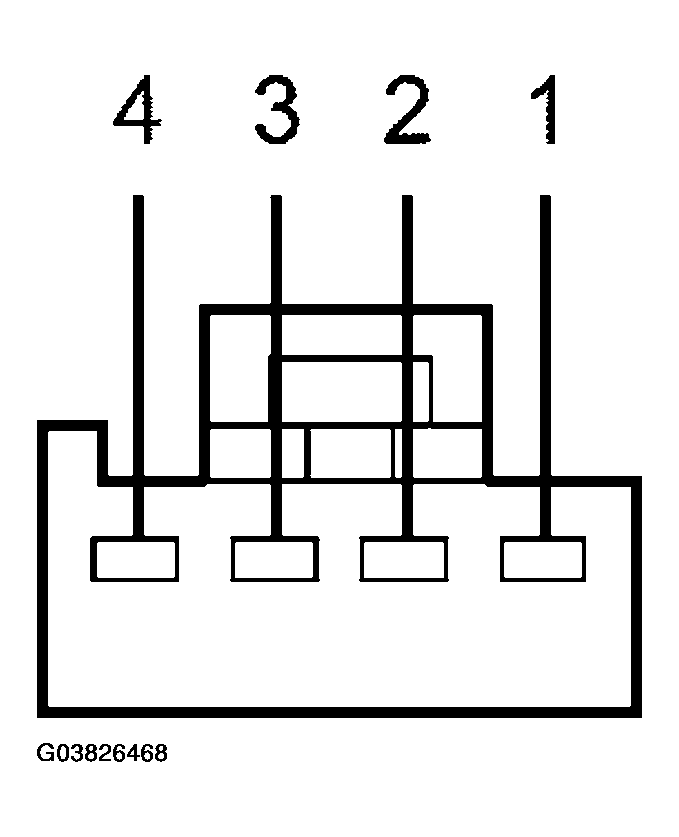

C226 CONNECTOR CIRCUIT DESCRIPTIONS
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 640 (RD/YE) steering wheel rotation sensor power | B+ voltage in Run (overload protected). |
| 2 | 1573 (YE) steering wheel rotation sensor input 2 | Less than 5 ohms between the ABS module and the steering wheel rotation sensor. |
| 3 | 1572 (DG) steering wheel rotation sensor input 1 | Less than 5 ohms between the ABS module and the steering wheel rotation sensor. |
| 4 | 1571 (BK) steering wheel rotation sensor return | Less than 5 ohms between the ABS module and the steering wheel rotation sensor. |
