Cylinder Head - Distortion

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

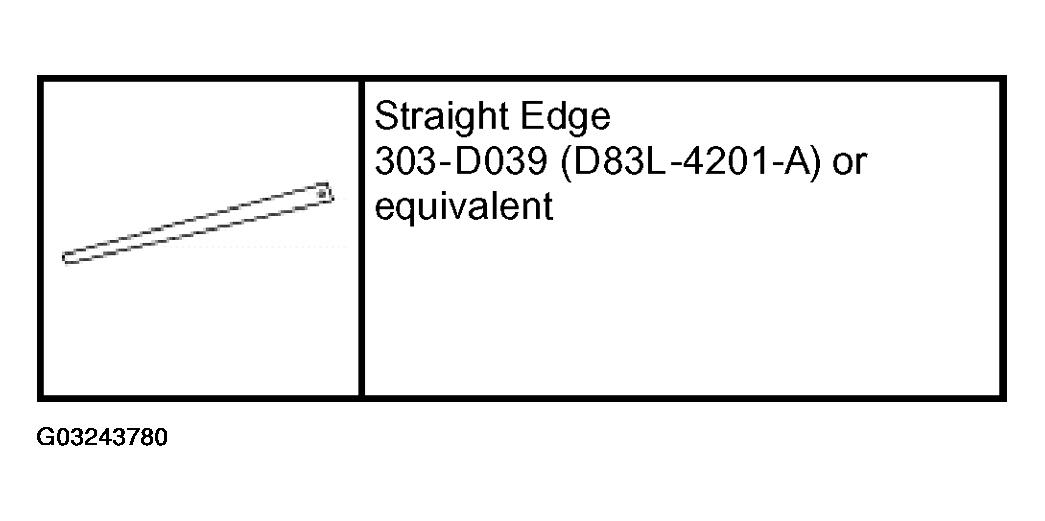

Fig 1: Identifying Special Tool(s) (Cylinder Head)
G03243780Courtesy of FORD MOTOR CO.
  1. Use a straight edge and a feeler gauge to inspect the cylinder head for flatness. If the cylinder head is distorted, install a new cylinder head.

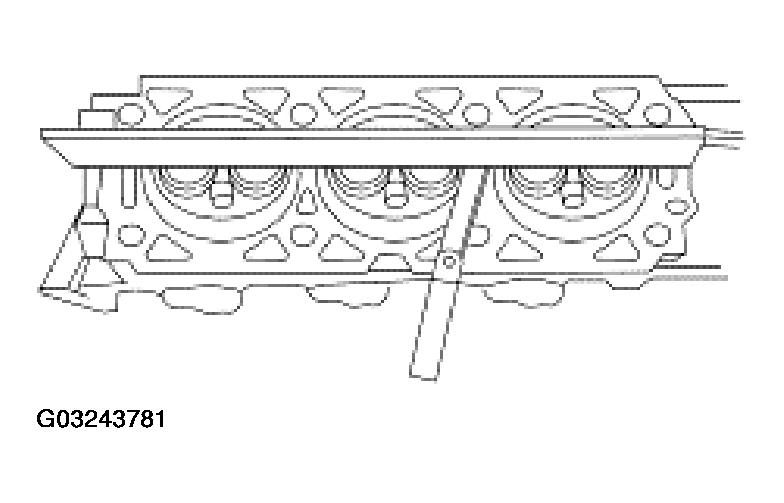

Fig 2: Inspecting Cylinder Head For Flatness
G03243781Courtesy of FORD MOTOR CO.
