Valve - Spring Free Length

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

Measure the free length of each valve spring.

Refer to ENGINE - 3.9L & 4.2L for the procedure.
If out of specification, install new components as necessary. Refer to ENGINE - 3.9L & 4.2L for the procedure .

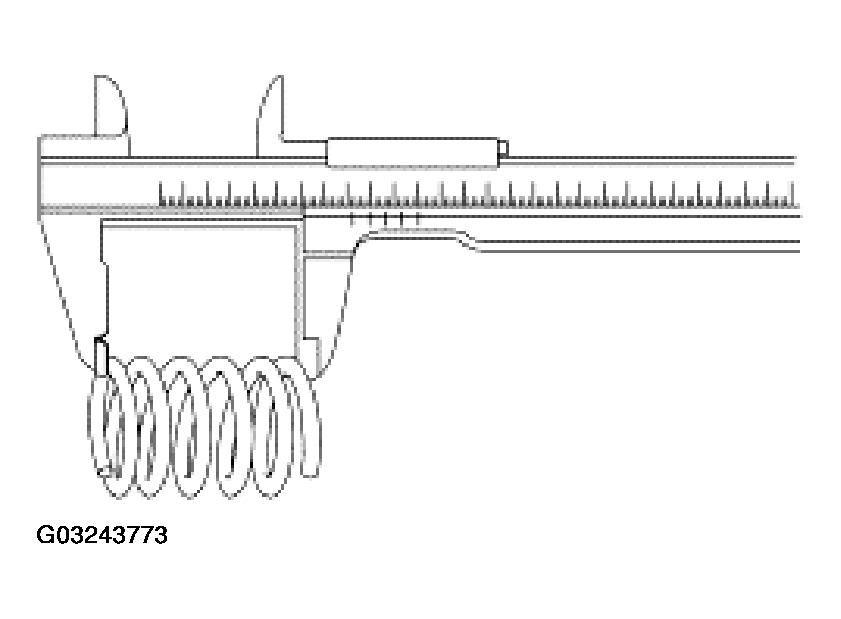

Fig 1: Measuring Free Length Of Valve Spring

Courtesy of FORD MOTOR CO.
