Accelerator Cable And Bracket: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

If removing the accelerator cable bracket, remove the air cleaner outlet tube. For additional information, Refer to AIR CLEANER ASSEMBLY .

Remove the parts in the order indicated in the following illustration and table.

PART REMOVAL STEPS

Part	Steps
Accelerator cable	1-5
Accelerator cable bracket	1, 2, 6-10

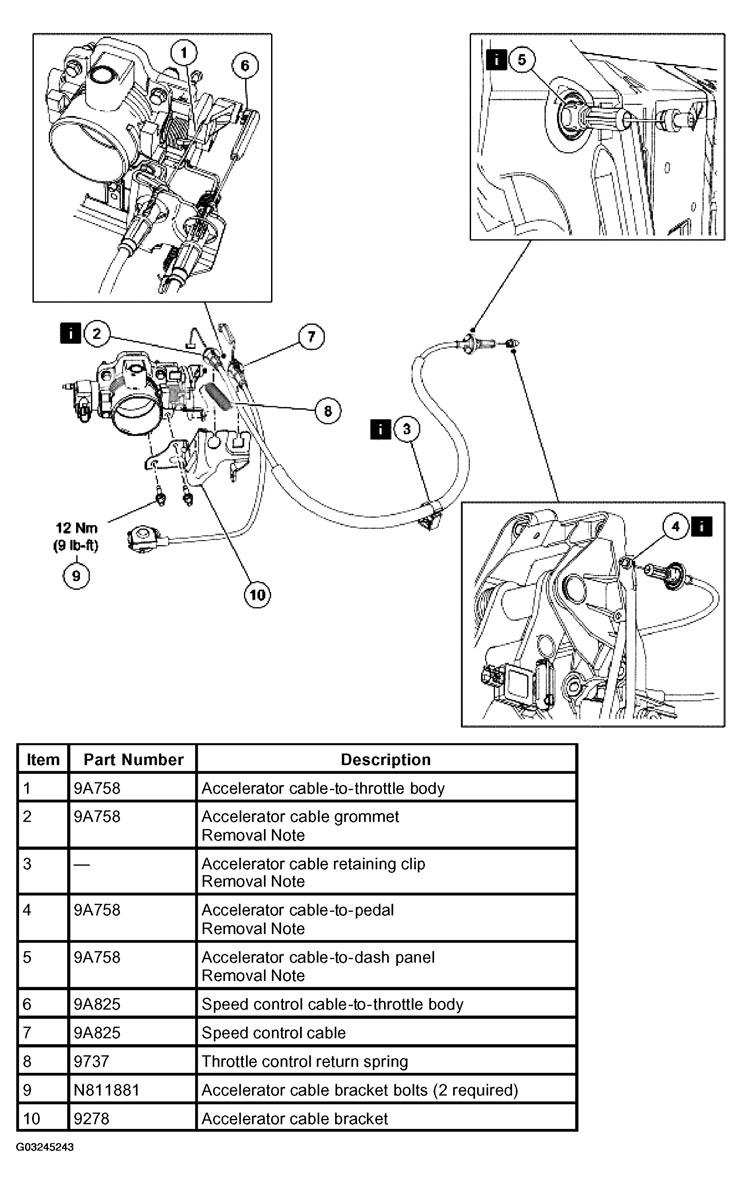

Fig 1: Accelerator Cable Components Removal Sequence

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
